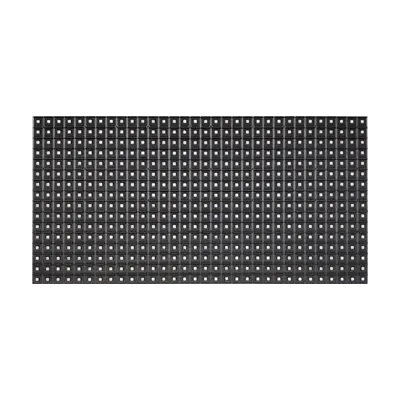

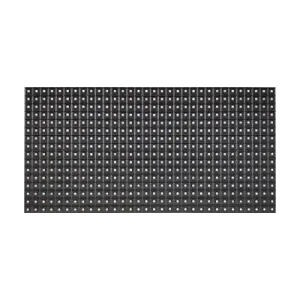

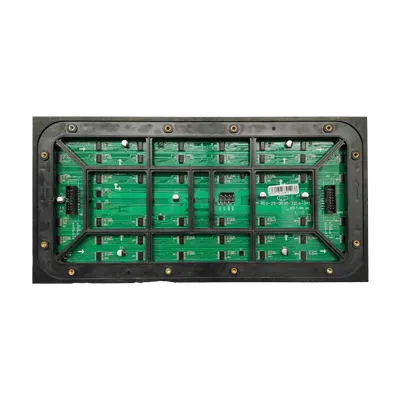

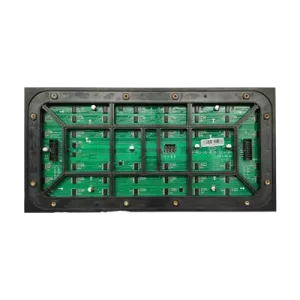

P10 Outdoor LED Display Module
৳ 2,500.00
Key Features:
-
Pixel Pitch: 10.0mm – ideal for long-range outdoor visibility
-
Resolution: 32×16 pixels on a 320×160mm panel
-
High Brightness: ≥5500 cd/m² for full-sunlight clarity
-
Refresh Rate: ≥1920Hz for smooth video playback
-
IP Rating: IP65 (Front), IP54 (Rear) – weatherproof design
-
Maintenance: Front & rear access supported
-
Viewing Angle: 160° H/V for wide audience engagement
-
Applications: Outdoor LED billboards, stadiums, street signage
-
Control System Compatibility: Novastar / Colorlight / Huidu
-
Long Life Span: Over 100,000 hours of continuous operation
Specification:
| Parameter | Value |
|---|---|
| Module Name | LC3P Outdoor LED Display Module |
| Pixel Pitch | 10.0mm |
| LED Type | SMD2121 |
| Module Size | 320mm × 160mm |
| Module Resolution | 32 × 16 pixels |
| Pixel Density | ~10,000 pixels/m² |
| Brightness | ≥5500 cd/m² |
| Refresh Rate | ≥1920Hz (Upgradable to 3840Hz) |
| Gray Scale | 14–16 bit |
| Viewing Angle | 160° (Horizontal & Vertical) |
| Cabinet Material | Die-cast Aluminum / Iron (Optional) |
| Cabinet Size (Optional) | 960×960mm / 960×480mm |
| Power Input | AC 100–240V, 50/60Hz |
| Max Power Consumption | ~700W/m² |
| Avg. Power Consumption | ~230W/m² |
| Control Compatibility | Novastar / Colorlight / Huidu |
| Installation Type | Fixed / Hanging / Rental |
| Maintenance Access | Front & Rear |
| IP Rating | IP65 (Front) / IP54 (Rear) |
| Operating Temperature | -20°C to +60°C |
| Life Span | ≥100,000 hours |
Description:
The LDMO1109 – P10 Outdoor LED Display Module is purpose-built for high-impact digital advertising in large-scale outdoor environments. Featuring a 10.0mm pixel pitch and a resolution of 32×16 pixels on a 320×160mm module, this unit balances visibility, cost-efficiency, and rugged design for long-range viewing.
Equipped with high-brightness SMD2121 LEDs, the module delivers a luminous output of ≥5500 cd/m², ensuring clear visibility even under direct sunlight. A wide 160° viewing angle allows maximum exposure from every direction, making it ideal for outdoor billboards, stadiums, and transportation hubs.
The module is IP65 rated at the front and IP54 at the rear, offering excellent protection against dust, rain, and harsh weather conditions. With support for both front and rear maintenance, installation and servicing are efficient and hassle-free.
The LDMO1109 is compatible with industry-leading control systems such as Novastar, Colorlight, and Huidu, allowing seamless integration into existing digital signage infrastructure. Designed for heavy-duty use, this module provides vibrant visuals, durability, and performance reliability over its extensive lifespan of 100,000+ hours.
