LED Display Builder

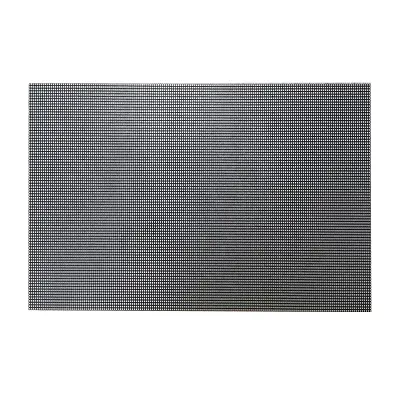

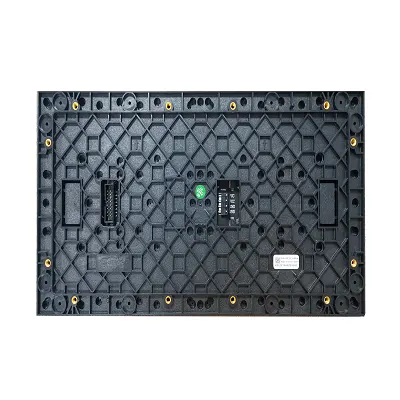

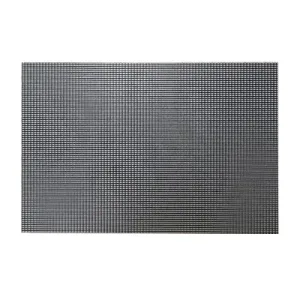

P1.86 Module Indoor Full-Color LED Display Module
৳ 8,500.00
Key Features
- Pixel Pitch: 1.86mm – ideal for indoor high-definition viewing
- LED Type: SMD1515 for vibrant and accurate color output
- Module Size: 320mm × 160mm
- Module Resolution: 172×86 pixels
- High Refresh Rate: ≥1920Hz – flicker-free video performance
- Brightness: ≥800 cd/m², perfect for indoor lighting conditions
- Wide Viewing Angle: 160° Horizontal & Vertical
- Maintenance: Supports both front & rear access
- Seamless Cabinet Design: Edge-to-edge installation with no visible gaps
- Applications: Indoor advertising, conference rooms, digital signage, broadcasting studios
Specification
| Module Name | LC1.86P Indoor LED Display Module |
| Pixel Pitch | 1.86mm |
| LED Type | SMD1515 |
| Module Size | 320mm × 160mm |
| Module Resolution | 172 × 86 pixels |
| Pixel Density | 289,050 pixels/m² |
| Brightness | ≥800 cd/m² |
| Refresh Rate | ≥1920Hz (Upgradable to 3840Hz) |
| Gray Scale | 14–16 bit |
| Viewing Angle | 160° (H) / 160° (V) |
| Cabinet Material | Die-cast Aluminum / Iron (Optional) |
| Cabinet Size (Optional) | 640×480mm / 960×480mm |
| Power Input | AC 100–240V, 50/60Hz |
| Max Power Consumption | ~600W/m² |
| Average Power Consumption | ~200W/m² |
| Control System Compatibility | Novastar / Colorlight / Huidu |
| Installation Type | Fixed / Rental / Hanging |
| Maintenance Access | Front & Rear |
| Operating Temperature | -10°C to +45°C |
| Life Span | ≥100,000 hours |
Description
The LC1.86P Indoor LED Module is a high-performance LED display solution designed for premium indoor environments that demand clarity, reliability, and aesthetic appeal. With a fine pixel pitch of 1.86mm, this module ensures HD-quality visuals, even when viewed from a short distance, making it ideal for conference rooms, command centers, corporate lobbies, and high-end retail spaces.
Built with SMD1515 LED technology and a resolution of 172×86 pixels per module, it provides vibrant colors, smooth transitions, and sharp image details. The refresh rate of ≥1920Hz ensures crystal-clear video playback with no flicker, while the wide 160° viewing angle guarantees great visibility from any direction.
Its 320mm × 160mm module size makes it easy to assemble into larger displays with seamless alignment. Whether installed as a fixed wall or a rental setup, the LC1.86P supports both front and rear maintenance, helping reduce downtime during servicing.
Compatible with all major control systems including Novastar, Colorlight, and Huidu, this module is easy to integrate and manage. If you’re building a professional indoor LED wall with stunning visual quality, the LC1.86P is a powerful and future-ready choice.
