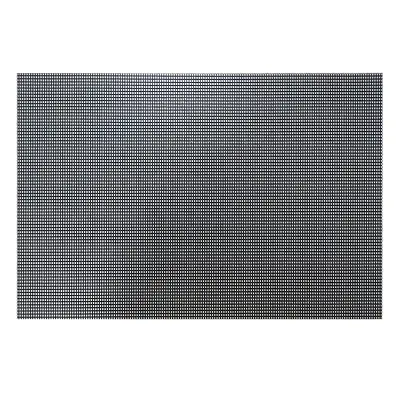

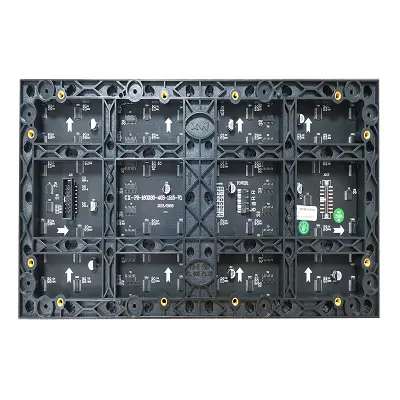

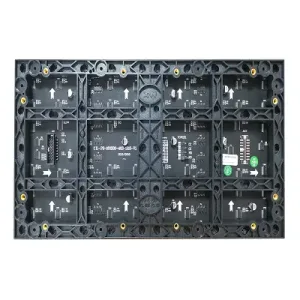

P2 Module Indoor Full-Color LED Display Module
৳ 7,500.00
Key Features
- Pixel Pitch: 2.0mm – for sharp and consistent indoor visuals
- LED Type: SMD1515 – high contrast and stable performance
- Module Size: 320mm × 160mm
- Module Resolution: 160×80 pixels
- Refresh Rate: ≥1920Hz for flicker-free video playback
- Brightness: ≥800 cd/m² – perfect for indoor light conditions
- Viewing Angle: 160° (H/V) – ultra-wide visibility
- Maintenance: Both front and rear access supported
- Cabinet Design: Seamless alignment for large video walls
- Applications: Ideal for conference halls, shopping malls, indoor advertising displays
Specification
| Module Name | LC2P Indoor LED Display Module |
| Pixel Pitch | 2.0mm |
| LED Type | SMD1515 |
| Module Size | 320mm × 160mm |
| Module Resolution | 160 × 80 pixels |
| Pixel Density | 250,000 pixels/m² |
| Brightness | ≥800 cd/m² |
| Refresh Rate | ≥1920Hz (Upgradable to 3840Hz) |
| Gray Scale | 14–16 bit |
| Viewing Angle | 160° (H) / 160° (V) |
| Cabinet Material | Die-cast Aluminum / Iron (Optional) |
| Cabinet Size (Optional) | 640×480mm / 960×480mm |
| Power Input | AC 100–240V, 50/60Hz |
| Max Power Consumption | ~600W/m² |
| Average Power Consumption | ~200W/m² |
| Control System Compatibility | Novastar / Colorlight / Huidu |
| Installation Type | Fixed / Rental / Hanging |
| Maintenance Access | Front & Rear |
| Operating Temperature | -10°C to +45°C |
| Life Span | ≥100,000 hours |
Description
The LC2P Indoor LED Display Module is designed for professional indoor LED applications where cost-efficiency meets quality. With a 2.0mm pixel pitch, it delivers crisp images and clear text, making it ideal for indoor advertising, retail displays, corporate presentations, and educational displays.
Each module measures 320mm × 160mm and features a resolution of 160×80 pixels, providing excellent picture quality even at close viewing distances. With SMD1515 LED technology and a refresh rate of ≥1920Hz, content playback remains smooth and vibrant with no visual lag or flicker.
The module supports front and rear maintenance, allowing for quick servicing, and is compatible with major control systems like Novastar, Colorlight, and Huidu, making it easy to integrate into any professional LED setup.
Whether you’re building a digital video wall, a shopping mall display, or a high-end showroom screen, the LC2P LED module delivers reliability, performance, and a long service life of over 100,000 hours.
