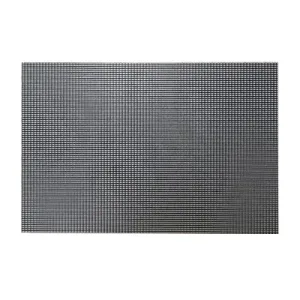

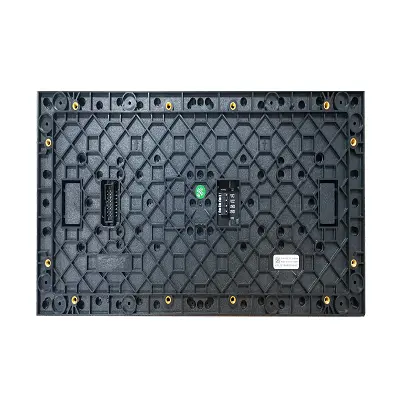

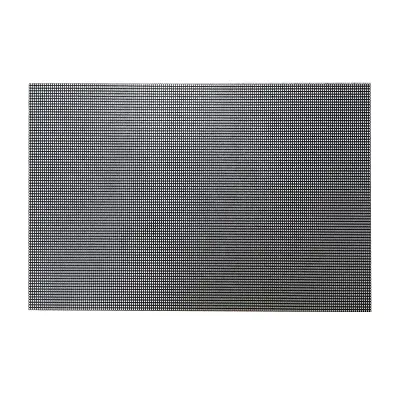

P1.53mm Indoor Full-Color LED Display Module
৳ 9,500.00
Key Features
- Pixel Pitch: 1.538mm — for high-definition indoor display
- LED Type: SMD1212 for fine pixel clarity
- Module Size: 320×160mm
- Module Resolution: 208×104 pixels
- High Refresh Rate: ≥1920Hz for smooth, flicker-free video
- Brightness: ≥800 cd/m², adjustable for various indoor lighting conditions
- Viewing Angle: 160° wide viewing for better visibility from any angle
- Seamless Splicing: Cabinet-friendly design for edge-to-edge installation
- Maintenance: Supports both front and rear maintenance
- Applications: Ideal for conference rooms, retail displays, indoor digital signage
Description
The LC1.538P is a high-resolution indoor LED display module with a 1.538mm pixel pitch and SMD1212 LEDs, delivering ultra-clear visuals for close-range viewing. With a 320×160mm size and 208×104 resolution, it supports ≥1920Hz refresh rate and ≥800 cd/m² brightness. Designed for smooth integration with Novastar, Colorlight, and Huidu systems, it’s ideal for video walls in corporate, retail, or studio environments. Front and rear maintenance ensures easy servicing in any setup.
Specification
| Module Name | LC1.538P Indoor LED Display Module |
| Pixel Pitch | 1.538mm |
| LED Type | SMD1212 |
| Module Size | 320mm × 160mm |
| Module Resolution | 208 × 104 pixels |
| Pixel Density | 422,500 pixels/m² |
| Brightness | ≥800 cd/m² |
| Refresh Rate | ≥1920Hz (up to 3840Hz optional) |
| Gray Scale | 14–16 bit |
| Viewing Angle | 160° (Horizontal & Vertical) |
| Cabinet Material | Die-cast Aluminum or Iron (optional) |
| Cabinet Size (typical) | 640mm × 480mm / 960mm × 480mm |
| Input Voltage | AC 100~240V, 50/60Hz |
| Max Power Consumption | Approx. 600W/m² |
| Avg. Power Consumption | Approx. 200W/m² |
| Control System | Novastar / Colorlight / Huidu Compatible |
| Installation Type | Fixed / Rental / Hanging |
| Maintenance Access | Front & Rear |
| Working Temperature | -10°C to +45°C |
| Life Span | ≥100,000 hours |
