Name: Quantum Optical Flap Turnstile Gate DS-Q30
Brand: Mugnee Multiple Limited
Availability: InStock

Key Features:

Optical flap turnstile with modern design

Strong steel body with white & black stoving varnish

Tempered glass swipe card panel

Plexiglass transparent flap arms

Supports single-directional & bi-directional access

High durability with up to 12 million operations

Fast flow rate for high-traffic areas

Multiple infrared sensors for accurate detection

Automatic arm opening during emergency

Suitable for indoor and outdoor use

Specifications

Description

Reviews (0)

Specification	Value
Model No.	DS-Q30
Brand	Daosafe
Framework Material	Steel + White & Black Stoving Varnish
Swipe Card Panel Material	Tempered Glass
Arm Material	Plexiglass (Transparent)

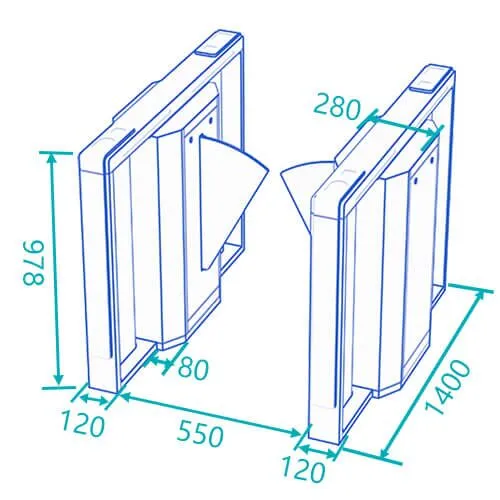

Dimension	1400 × 280 × 978 mm
Weight	65 kg / pcs
Passage Width	550 mm
Passing Direction	Single Directional / Bi-Directional
MCBF	12 Million
Power Supply	AC 220V / 110V, 50/60 Hz
Operation Voltage	24V DC
Power Consumption	20 W
Operation Temperature	−20°C to +75°C
Operation Humidity	0–95% (No Freezing)
Working Environment	Indoor / Outdoor
Flow Rate	Up to 45 persons per minute
Infrared Sensor	7 Pairs (Standard)
LED Indicator	Yes
Emergency Function	Arms Open Automatically
Communication Interface	Dry Contact, Relay Signal, RS485

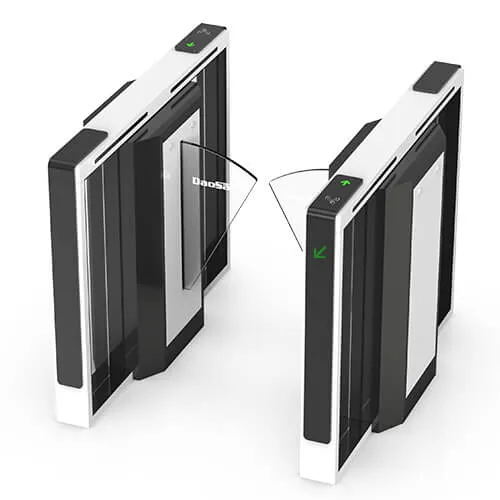

The Quantum Optical Flap Turnstile DS-Q30 is a modern access control solution designed for smooth, secure, and high-traffic pedestrian management. Built with a robust steel body and tempered glass panel, it delivers durability along with a premium appearance. Equipped with multiple infrared sensors and intelligent control logic, the turnstile ensures accurate passage detection, prevents tailgating, and supports both single and bi-directional access. It is suitable for offices, commercial buildings, corporate lobbies, metro stations, and other high-security environments.
