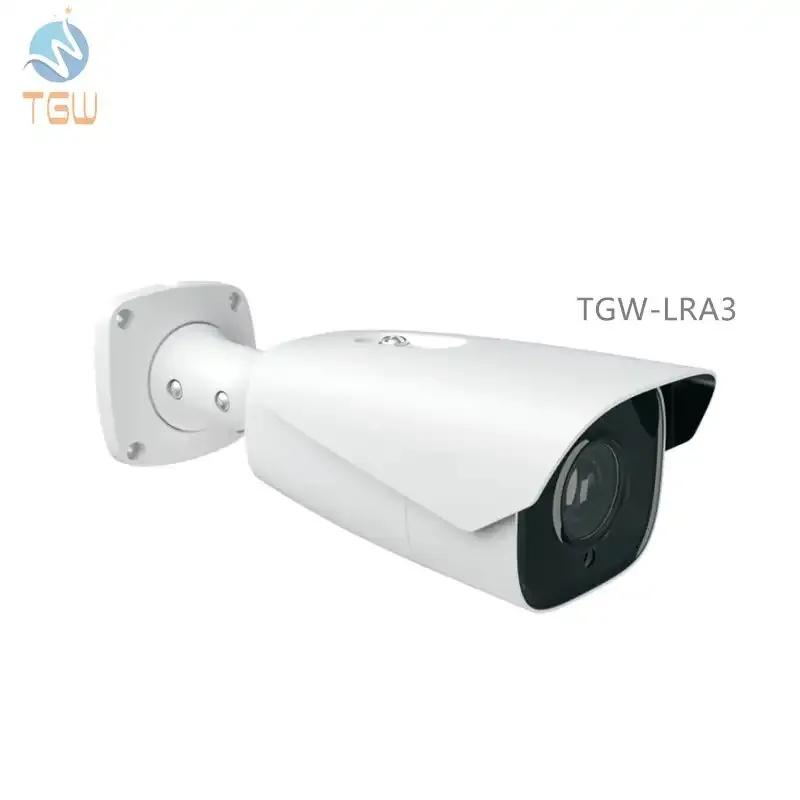

TGW ANPR System – Automatic Number Plate Recognition Parking Camera

The TGW ANPR System is an advanced automatic number plate recognition (ANPR) parking camera designed to deliver high-accuracy vehicle identification for parking access control, toll management, and restricted area monitoring. Equipped with a built-in LPR (License Plate Recognition) camera, it captures and processes plate numbers in real time, ensuring seamless and secure entry management.

Featuring multiple trigger options, the system can detect approaching vehicles via head sensing technology or external loop coils embedded in the roadway. Once triggered, the integrated 2 MP camera captures a high-definition image at a resolution of 1920 × 1080, while built-in OCR software processes and verifies the plate against a whitelist or access database.

To ensure round-the-clock functionality, the ANPR camera includes an adaptive fill light system that activates in low-light conditions (below 30 lux), enabling high recognition accuracy even at night. The unit maintains an impressive 98–99% recognition rate in controlled environments, with an optimal detection range of 3–10 meters and support for vehicle speeds up to 35 km/h.

Integrated with a 4-line LED digital display, the system communicates real-time status updates, including recognized plate numbers, access confirmation messages, and custom alerts. The automatic reset function ensures operational reliability by returning the system to standby mode if no vehicle is detected after a trigger event.

Constructed from weatherproof cold-rolled iron, the TGW ANPR System is built for durability in outdoor environments, making it ideal for deployment in parking lots, toll booths, gas stations, gated communities, and logistics centers. Connectivity is handled via TCP/IP, allowing for remote monitoring, management, and data logging from a centralized control room or cloud-based platform.

The system supports integration with various security and automation devices, including boom barriers, turnstiles, and voice broadcast systems. Optional features such as white/blacklist vehicle management, time-based access permissions, and cloud data synchronization further enhance its adaptability for different operational needs.

System Workflow

1. Vehicle approaches the entrance, detected via loop coil or head sensor.
2. ANPR camera captures the license plate image in Full HD.
3. OCR software processes the plate and verifies it against the database.
4. System authorizes entry, opens the barrier, or logs the attempt.
5. LED display shows the plate number and access confirmation.

Ideal Use Cases

• Smart Parking Lots: Automate entry and exit with vehicle-based authentication.
• Toll Gates: Speed up toll collection by removing manual checks.
• Gated Residential Communities: Provide secure, contactless resident and visitor access.
• Fuel Stations & Car Washes: Control vehicle flow and prevent unauthorized entry.
• Logistics Centers: Manage truck and fleet vehicle access with automated logging.

Why Choose This Model?

Combining high-accuracy recognition, real-time display, and multi-system integration, the TGW ANPR System delivers unmatched efficiency and security for vehicle access management. With its robust build, advanced detection technology, and cloud-ready features, it’s a reliable choice for both standalone and integrated deployments.
