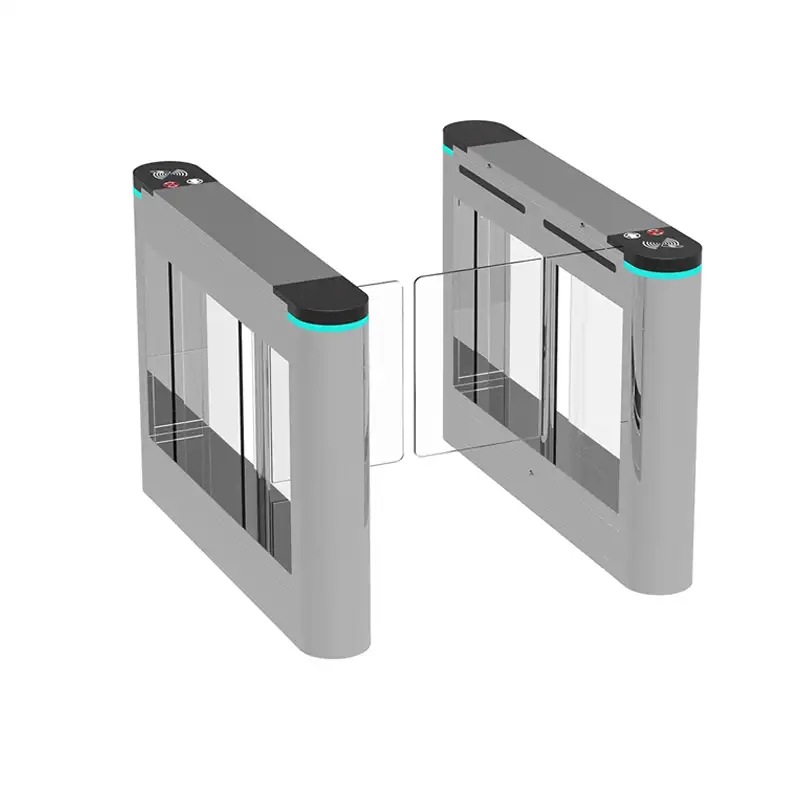

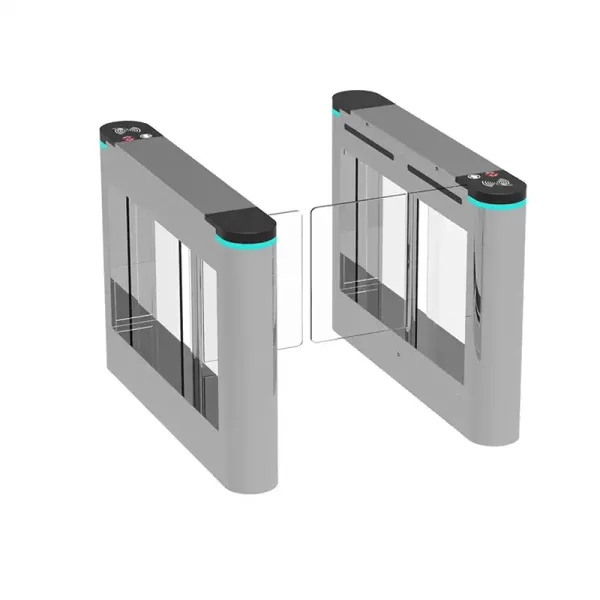

Swing Turnstile – Mechanical Automatic Barrier Gate

The Swing Turnstile – Mechanical Automatic Barrier Gate is a robust and versatile pedestrian access control solution designed for high-traffic environments. Built with high-grade 304 stainless steel at 1.5 mm thickness, it offers exceptional durability and resistance to wear, making it suitable for both indoor and outdoor installations.

With its flexible mode settings, the gate can be configured for automatic, one-way, or bi-directional access. It is ideal for controlling pedestrian flow in commercial buildings, offices, public facilities, transportation hubs, and retail spaces. The built-in anti-collision mechanism ensures safety by gently returning the arm if it comes into contact with an obstruction, reducing the risk of damage to both the gate and users.

The gate is equipped with a reliable automatic reset function: if no passage occurs within 1–60 seconds (default ~10 seconds), the barrier arm resets to its default position. Infrared safety sensors provide enhanced protection, with 2 pairs dedicated to anti-collision detection and 2 pairs for alarm triggering. This combination ensures safety for users, including those with mobility aids such as wheelchairs, bicycles, or trolleys.

LED indicators on each cabinet clearly display entry direction, improving traffic flow and user convenience. The system supports remote operation, allowing administrators to manage gate control and monitor status from a centralized location. Additionally, the turnstile integrates seamlessly with various systems including access control, ticketing, ESD (electrostatic discharge) prevention, and consumption systems.

Engineered for longevity, the gate boasts a service life of up to 5 million cycles and can operate efficiently in temperatures ranging from -25°C to +60°C, with humidity tolerance up to 90% RH. It consumes only 90W of power, making it energy efficient without compromising on performance.

Optional features such as voice prompts, custom cabinet finishes, extended arm or passage width, and biometric reader integration (QR code, facial recognition, or fingerprint) make this turnstile adaptable to a wide range of applications. These options allow organizations to tailor the solution to their specific operational and branding needs.

Ideal Use Cases

• Building Entrances: Provides controlled access for commercial, corporate, and public buildings.
• Transport Terminals: Manages pedestrian flow at train stations, airports, and bus depots.
• Retail Environments: Enhances security and optimizes traffic movement in stores and malls.
• Inclusive Access Points: Allows easy entry for wheelchairs, bicycles, and trolleys.

Why Choose This Model?

With its combination of high durability, safety features, flexible operation modes, and integration capabilities, the Swing Turnstile – Mechanical Automatic Barrier Gate offers a dependable and cost-effective solution for modern pedestrian traffic management. Its sleek design, energy efficiency, and customization options make it an excellent fit for various industries and environments.
