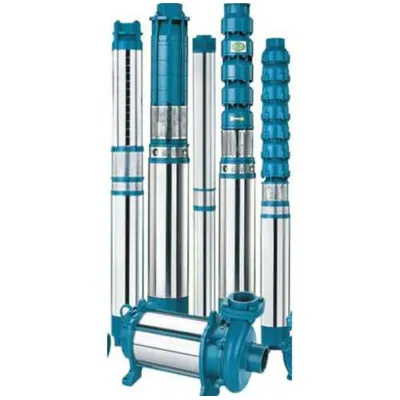

Submersible Pump

Key Features

  • Fully submerged operation – No need for priming
  • High efficiency impeller and motor design
  • Corrosion and rust-resistant stainless steel body
  • Thermal overload & dry run protection (optional)
  • Low noise and vibration-free operation
  • Compact design and easy installation
  • Available in single-phase and three-phase
  • Wide range of head and flow rates
  • Sealed motor chamber with oil-filled lubrication system

A Submersible Pump is a type of pump that operates while being fully submerged in water or fluid. These pumps are specially designed for deep-well or underwater pumping, ensuring quiet operation, high efficiency, and low maintenance. Widely used in agriculture, industry, homes, and municipal systems, submersible pumps are ideal for lifting water from deep sources.

Applications

  • Agriculture – Irrigation, tube wells, drip systems
  • Domestic – Deep bore wells for home & buildings
  • Industrial – Process water pumping, factories
  • Municipal – Deep well water supply, drainage
  • Construction – Dewatering & groundwater control
  • Sewage – Pumping wastewater and slurry

Technical Specifications

ParameterSpecification
Pump TypeBorewell / Openwell / Sewage / Slurry
Power Rating0.5 HP – 100 HP
Voltage220V (1-phase) / 380–440V (3-phase)
Head Range10 – 300 meters
Flow Rate20 – 800 LPM (liters per minute)
Pump Diameter3", 4", 6", 8", 10"
MaterialSS304 / Cast Iron / Brass Impellers
Motor TypeWater-cooled / Oil-filled / Rewindable
Protection ClassIP68
Cooling TypeWater Cooled / Oil Cooled
Cable Length10 – 100+ meters (customizable)
