Power Logger

Power Logger

৳ 0.00

Key Features

  • 3-phase and single-phase measurement
  • True RMS voltage and current logging
  • Records V, A, kW, kVA, kVAR, PF, Hz, THD
  • Large internal memory or SD card for long-term logging
  • Graphical LCD display with intuitive UI
  • Built-in rechargeable battery for field portability
  • Harmonic analysis up to 50th order
  • USB / Bluetooth / Wi-Fi / RS485 data communication
  • Event-triggered recording for transient monitoring
  • Supports CSV, Excel, or proprietary software export

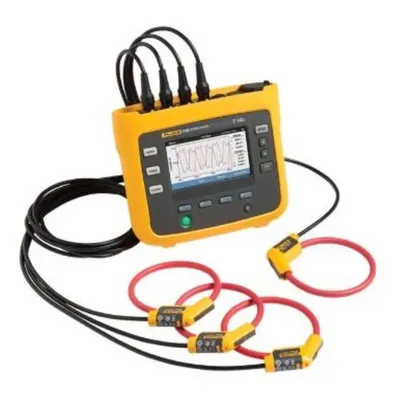

A Power Logger is a portable, high-precision instrument used to measure, record, and analyze voltage, current, power, harmonics, and energy data over time. Ideal for energy audits, load profiling, and power quality analysis, it supports multi-phase systems and features large data memory with USB/SD card or software-based data export. Many models support Wi-Fi, Bluetooth, or Modbus for real-time monitoring.



Applications

  • Industrial and commercial energy auditing
  • Load profiling and demand forecasting
  • Power quality assessment (THD, voltage dips/spikes)
  • Renewable energy monitoring (solar, wind inverters)
  • DG set and transformer performance measurement
  • Building Management System (BMS) data logging
  • Utility substations and critical equipment diagnostics
ParameterSpecification
Voltage Range100V – 1000V AC (L-L or L-N)
Current Range1A – 5000A (with clamp CT)
Power Accuracy±0.5% (typical)
HarmonicsUp to 50th order
Display3.5" to 7" Color LCD
Data Storage8MB – 32GB (Internal / SD card)
Battery BackupLi-ion battery (6–10 hours runtime)
CommunicationUSB, RS232, RS485, Bluetooth, Wi-Fi (model specific)
Supported ProtocolsModbus RTU/TCP, CSV export
MountingPortable (handheld or tripod-mountable)
ProtectionIP40–IP54 (portable enclosure)
SoftwarePC/Mobile compatible data viewer and analyzer
