High-brightness P8 outdoor LED display screen for clear advertising visuals
P8 Outdoor LED Display Module – 320×160mm size with SMD2121 LEDs, high brightness, and IP65 front protection.
back 1 1
Weatherproof P8 outdoor LED display module
  • High-brightness P8 outdoor LED display screen for clear advertising visuals
  • P8 Outdoor LED Display Module – 320×160mm size with SMD2121 LEDs, high brightness, and IP65 front protection.
  • back 1 1
  • Weatherproof P8 outdoor LED display module

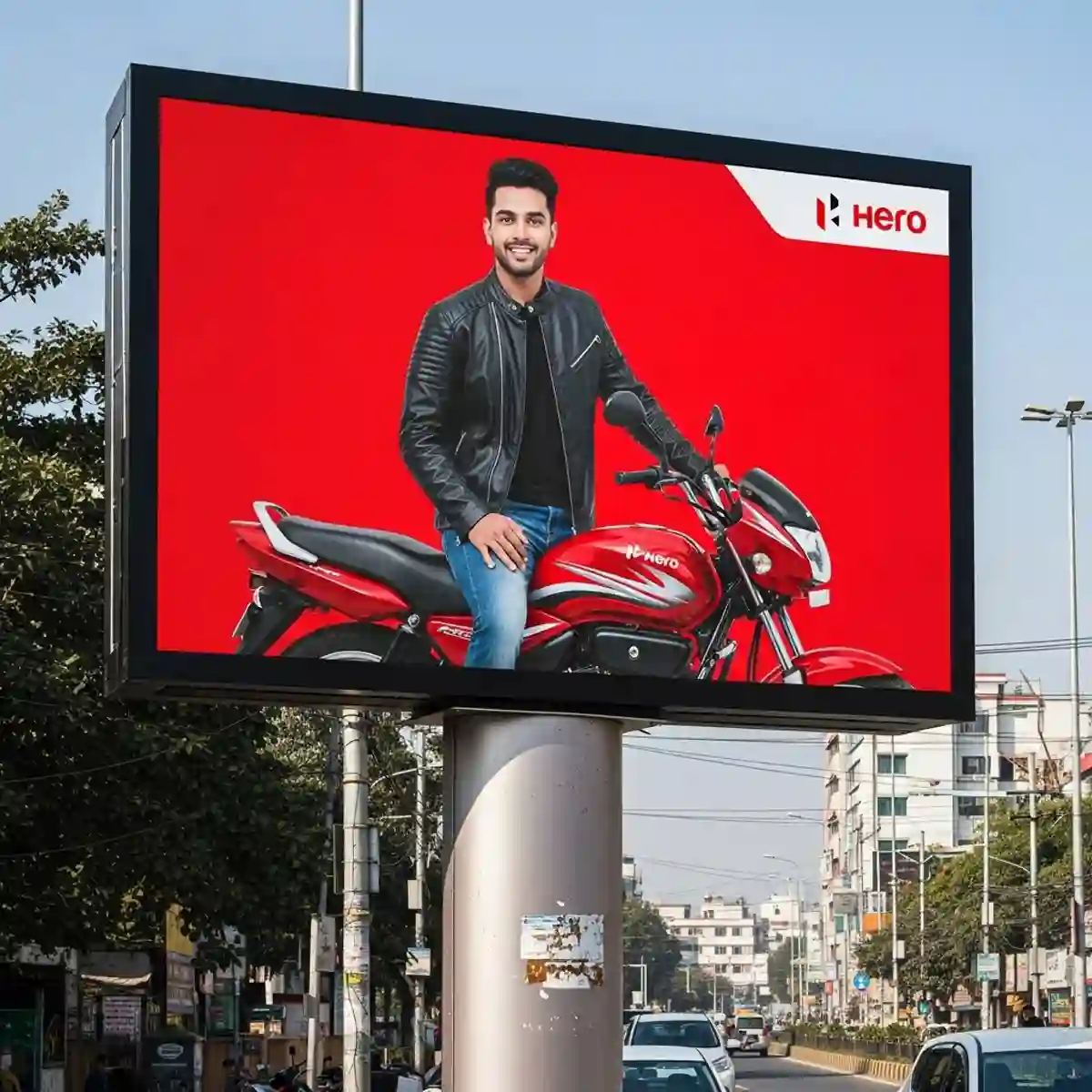

P8 Outdoor LED Display Screen for Advertising

Original price was: ৳ 15,000.00.Current price is: ৳ 14,500.00.

Key Features of P8 Outdoor LED Display Module

  • 320×160 mm universal size
  • Bottom case texture design: Enhanced exterior texture
  • High protection class LED lamp
  • New PCB Design: More reliable and stable performance
  • Waterproof and moisture-proof: Front side glue-sealed for better protection
  • High Brightness & High Heat Dissipation
  • High Refresh & High Grayscale
  • Excellent Visual Experience
  • Good Compatibility: Replace outdoor P2.5 ~ P8 modules within same LC series
  • Supports 45° Tangent Angle
  • Customizable for Special Environments: Coastal, low temperature, or high humidity areas
ParameterValue
Pixel Pitch8 mm
LED TypeSMD2727
Module Resolution (W×H)40 × 20 = 800 pixels
Pixel Density15,625 dots / m²
Module Size (W×H×D)320 × 160 × 18.5 mm
Module Weight0.48 ± 0.02 kg
HUB TypeHUB75
Brightness4,000 – 4,500 cd/m²
Color Temperature6,500 K (adjustable 1,000 K – 9,500 K)
Viewing Angle (H/V)140° / 140°
Brightness / Color Uniformity≥ 98 %
Contrast Ratio5,000 : 1
Max Power Consumption879 W/m²
Typical Power Consumption293 W/m²
Input VoltageAC 90 – 132 V / AC 186 – 264 V (47 – 63 Hz)
Frame Frequency60 Hz
Refresh Rate3,840 Hz
Processing Depth12 – 14 bit
Video Support2K HD / 4K UHD
Life Span100,000 hours
Operating Temp / Humidity–20 °C ~ 50 °C / 10 % ~ 80 % RH (No Condensation)
Storage Temp / Humidity–20 °C ~ 55 °C / 10 % ~ 85 % RH (No Condensation)
CertificationsBIS / CE / CB / ROHS / EAC

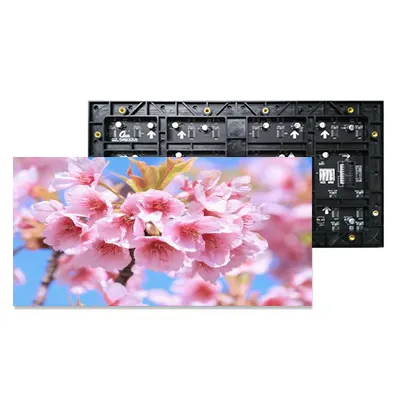

P8 Outdoor LED Display Module

The P8 Outdoor LED Display Module is an industrial-grade, high-visibility digital signage solution built for demanding outdoor environments. Featuring a pixel pitch of 8.0mm and a 40×20 resolution layout, this 320×160mm module offers an optimal balance of clarity, brightness, and cost-efficiency.

Powered by SMD2121 LEDs, the module delivers a brilliant brightness level of ≥5500 cd/m², ensuring your content remains vividly visible in direct sunlight. Its wide 160° viewing angle guarantees that advertisements or live feeds are legible from virtually any direction.

Rated IP65 at the front and IP54 at the rear, the module withstands rain, dust, and harsh climate conditions. Whether deployed in roadside billboards, stadium scoreboards, or open-air digital advertising systems, the module performs reliably with minimal maintenance.

With support for both front and rear servicing, and seamless compatibility with control systems like Novastar, Colorlight, and Huidu, integration into existing setups is simple and efficient. The LDMO1108 is ideal for long-lasting outdoor applications demanding brightness, ruggedness, and scalability.

Visit Our LED Display

1 review for P8 Outdoor LED Display Screen for Advertising

  1. Nafis Rahman –

    The P8 Outdoor LED Display Module supplied by Mugnee Multiple Limited has delivered excellent outdoor visibility, stable performance, and durability. The screen performs perfectly even under strong sunlight, maintaining bright and clear visuals at long distances.
