P4 Outdoor LED Display Screen Panel Module for advertising in Bangladesh
P4 outdoor LED display Module for advertising in Bangladesh
P4 LED Display
P4 LED Display
P4 LED Display
  • P4 Outdoor LED Display Screen Panel Module for advertising in Bangladesh
  • P4 outdoor LED display Module for advertising in Bangladesh
  • P4 LED Display
  • P4 LED Display
  • P4 LED Display

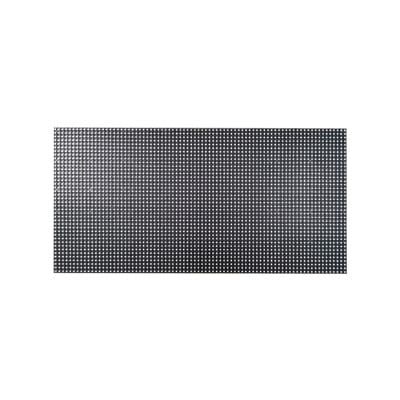

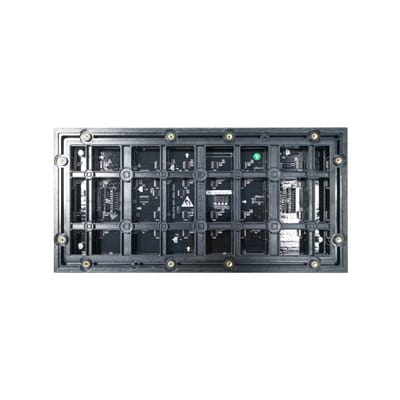

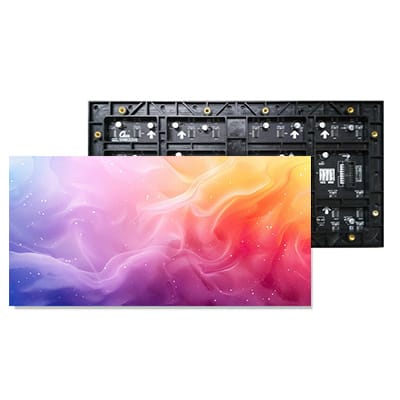

P4 Outdoor LED Display Screen Panel Module

Original price was: ৳ 9,000.00.Current price is: ৳ 8,500.00.

Key features of P4 Outdoor LED Display

  • 320×160 mm universal size
  • Bottom case texture design: Enhanced exterior texture
  • High protection class LED lamp
  • New PCB Design: More reliable and stable performance
  • Waterproof and moisture-proof: Front side glue-sealed for better protection
  • High Brightness & High Heat Dissipation
  • High Refresh & High Grayscale
  • Excellent Visual Experience
  • Good Compatibility: Replace outdoor P2.5 ~ P8 modules within same LC series
  • Supports 45° Tangent Angle
  • Customizable for Special Environments: Coastal, low temperature, or high humidity areas
ParameterValue
Pixel Pitch4 mm
LED TypeSMD1921
Module Resolution (W×H)80 × 40 = 3,200 pixels
Pixel Density62,500 dots / m²
Module Size (W×H×D)320 × 160 × 18 mm
Module Weight0.49 ± 0.02 kg
HUB TypeHUB75
Brightness5,000 – 5,500 cd/m²
Color Temperature6,500 K (adjustable 1,000 K – 9,500 K)
Viewing Angle (H/V)140° / 140°
Brightness / Color Uniformity≥ 98 %
Contrast Ratio5,000 : 1
Max Power Consumption879 W/m²
Typical Power Consumption293 W/m²
Input VoltageAC 90 – 132 V / AC 186 – 264 V (47 – 63 Hz)
Frame Frequency60 Hz
Refresh Rate1,920 Hz
Processing Depth12 – 14 bit
Video Support2K HD / 4K UHD
Life Span100,000 hours
Operating Temp / Humidity–20 °C ~ 50 °C / 10 % ~ 80 % RH (No Condensation)
Storage Temp / Humidity–20 °C ~ 55 °C / 10 % ~ 85 % RH (No Condensation)
CertificationsBIS / CE / CB / ROHS / EAC


P4 Outdoor LED Display Screen Panel Module

The LC3P Indoor LED Module (320×160mm) with a 4.0mm pixel pitch is designed for applications needing clear visuals at standard viewing distances. With a calculated resolution of 80×40 pixels, it is ideal for large indoor displays in auditoriums, conference centers, and public signage.

SMD2121 LEDs deliver sharp contrast and consistent color, while the ≥1920Hz refresh rate ensures video and motion graphics play smoothly. The module supports both front and rear maintenance and works seamlessly with major control systems including Novastar and Colorlight.

It offers an optimal balance between performance, pixel clarity, and affordability for indoor display networks.

1 review for P4 Outdoor LED Display Screen Panel Module

  1. Tasnim Chowdhury –

    I installed the P4 Outdoor LED Display Module for my shop’s advertising, and I’m really happy with it. The screen is bright, clear, and looks great even during the day. Videos play smoothly without any flicker, and setting it up was super easy. It’s also easy to maintain and feels very solid. Honestly, one of the best LED display options in Bangladesh for the price.
