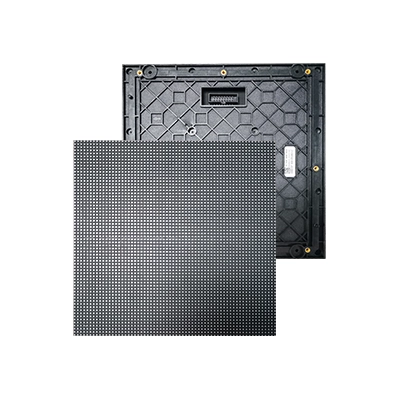

  • P3 a

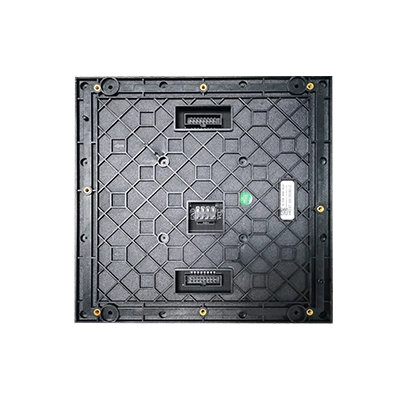

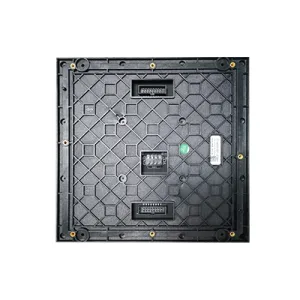

  • P3 back

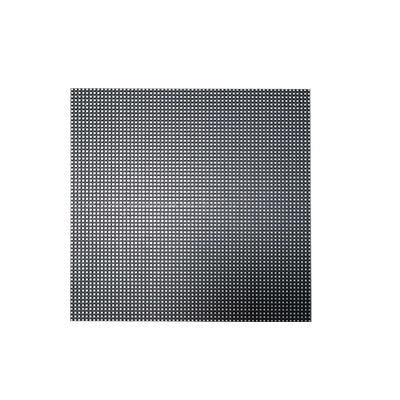

  • P3 1

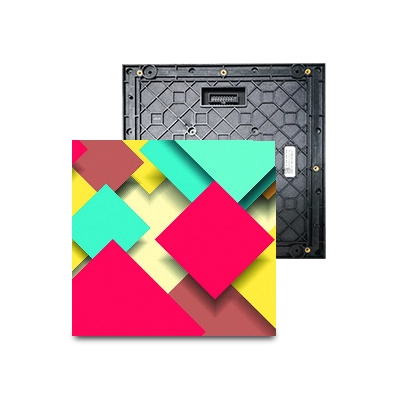

P3 Indoor LED Display Module

Original price was: ৳ 6,200.00.Current price is: ৳ 5,500.00.

Key Features of P3 Indoor LED Display Module

  • Standard Size: 192×192mm
  • Bottom Case Texture Design
  • High-Quality Lamp Beads: Lamp beads do not fall off easily
  • New PCB Design: More reliable and stable performance
  • Lightweight Installation: Reduced screen weight, lowers structural load of the building.
  • Excellent Visual Experience
  • Good Compatibility
  • Supports Coating Process
  • Supports 7680 Hz Refresh Rate
ParameterValue
Pixel Pitch3 mm
LED TypeSMD2121
Module Resolution (W×H)64 × 64 = 4,096 pixels
Pixel Density102,400 dots/m²
Module Size (W×H×D)192 × 192 × 14 mm
Module Weight0.23 ± 0.02 kg
HUB TypeHUB75
Brightness≥ 500 cd/m²
Color Temperature2000 K – 9300 K adjustable
Viewing Angle (H/V)140° / 140°
Brightness / Color Uniformity≥ 98 %
Contrast Ratio5000 : 1
Max Power Consumption543 W/m²
Typical Power Consumption180 W/m²
Input VoltageAC 90 – 132 V / AC 186 – 264 V (47 – 63 Hz)
Frame Frequency60 Hz
Refresh Rate3840 Hz (Standard) / 7680 Hz
Processing Depth12 – 14 bit
Video Support2K HD / 4K UHD
Life Span100,000 hours
Operating Temp / Humidity–20 °C ~ 45 °C / 10 % ~ 50 % RH (No Condensation)
Storage Temp / Humidity–20 °C ~ 50 °C / 10 % ~ 60 % RH (No Condensation)
CertificationsBIS / CE / CB / ROHS / EAC


P3 Indoor LED Display Module

In modern visual communication, clarity and color depth matter more than ever. The P3 Indoor Full-Color LED Display Module by Mugnee Multiple Limited is purpose-built for high-performance indoor applications where quality and engagement are essential. With a pixel pitch of 3mm, it strikes a balance between resolution and cost, making it an ideal choice for a wide range of commercial and institutional indoor environments.

The P3 Indoor Full-Color LED Display Module delivers vibrant full-color visuals with exceptional clarity and stability. With its 3mm pixel pitch, high refresh rate, and seamless design, it’s ideal for indoor advertising, events, studios, and control rooms. Reliable, energy-efficient, and easy to maintain.

Where to Use:

The P3 Indoor LED Module fits perfectly in indoor areas where visual precision is essential:

  • Retail Outlets & Shopping Malls – Dynamic ads & promotions

  • Corporate Environments – Digital dashboards & presentations

  • Studio Backdrops – Seamless integration with zero flicker

  • Educational Institutions – Lecture walls & smart classrooms

  • Broadcast Control Rooms – Live content & data display

  • Hotels & Conference Halls – Digital welcome screens

  • Museums & Exhibitions – Interactive visitor engagement

Want a more interactive solution? See our Interactive Flat Panel Displays for classrooms and offices.

 Understanding Pixel Pitch & Resolution

Pixel pitch defines how close the LED pixels are. A smaller pitch = more resolution = better image quality.

 According to Wikipedia on Pixel Pitch, lower pixel pitch means higher pixel density and sharper displays — especially valuable in close-viewing indoor areas.

With a 3.0mm pitch, this module can achieve HD quality visuals while staying cost-effective. Perfect for spaces with a 3–10 meter viewing distance.

Learn more about LED displays on Wikipedia

Easy Installation & Serviceability

Mugnee offers nationwide installation support in Bangladesh. We provide:

  • Custom sizing & screen structure
  • Wall-mount, hanging or stand-based setup
  • CMS software & training
  • 24/7 support with parts & service

Also see our Outdoor LED Module Collection for weather-resistant options.
