| Parameter | Value |
|---|---|
| Pixel Pitch | 2.5 mm |
| LED Type | SMD1415 |
| Module Resolution (W×H) | 128 × 64 = 8,192 pixels |
| Pixel Density | 160,000 dots / m² |
| Module Size (W×H×D) | 320 × 160 × 17.5 mm |
| Module Weight | 0.46 ± 0.02 kg |
| HUB Type | HUB75 |
| Brightness | 4,000 ~ 4,500 cd/m² |
| Color Temperature | 6,500 K (adjustable 1,000 K ~ 9,500 K) |
| Viewing Angle (H/V) | 140° / 140° |
| Brightness / Color Uniformity | ≥ 98 % |
| Contrast Ratio | 5000 : 1 |
| Max Power Consumption | 879 W/m² |
| Typical Power Consumption | 293 W/m² |
| Input Voltage | AC 90–132 V / AC 186–264 V (47–63 Hz) |
| Frame Frequency | 60 Hz |
| Refresh Rate | 1920 Hz |
| Processing Depth | 12–14 bit |
| Video Support | 2K HD / 4K UHD |
| Life Span | 100,000 hours |
| Operating Temp / Humidity | –20 °C ~ 50 °C / 10 % ~ 80 % RH (No Condensation) |
| Storage Temp / Humidity | –20 °C ~ 55 °C / 10 % ~ 85 % RH (No Condensation) |
| Certifications | BIS / CE / CB / ROHS / EAC |

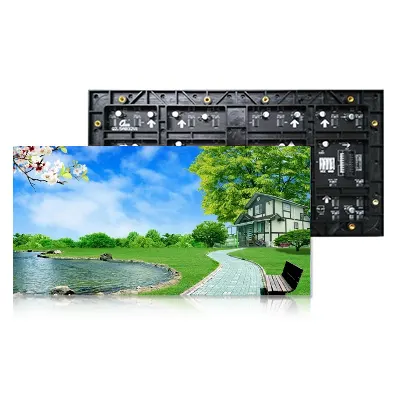

P2.5 Outdoor LED Display | Advertising Display
৳ 6,500.00 – ৳ 8,500.00Price range: ৳ 6,500.00 through ৳ 8,500.00
Key Features of P2.5 Outdoor LED Display
- 320×160 mm universal size
- Bottom case texture design: Enhanced exterior texture
- High protection class LED lamp
- New PCB Design: More reliable and stable performance
- Waterproof and moisture-proof: Front side glue-sealed for better protection
- High Brightness & High Heat Dissipation
- High Refresh & High Grayscale
- Excellent Visual Experience
- Good Compatibility: Replace outdoor P2.5 ~ P8 modules within same LC series
- Customizable for Special Environments: Coastal, low temperature, or high humidity areas
