Weatherproof P10 outdoor LED display board for highway billboards
p10 1
P10
Weatherproof P10 outdoor LED display board for highway billboards
  • Weatherproof P10 outdoor LED display board for highway billboards
  • p10 1
  • P10
  • Weatherproof P10 outdoor LED display board for highway billboards

P10 Outdoor LED Sign Board Price in Bangladesh

৳ 2,500.00

Key Features of P10 Outdoor LED Sign Board

  • 320×160 mm universal size
  • Bottom case texture design: Enhanced exterior texture
  • High protection class LED lamp
  • New PCB Design: More reliable and stable performance
  • Waterproof and moisture-proof: Front side glue-sealed for better protection
  • High Brightness & High Heat Dissipation
  • High Refresh & High Grayscale
  • Excellent Visual Experience
  • Good Compatibility: Replace outdoor P2.5 ~ P8 modules within same LC series
  • Supports 45° Tangent Angle
  • Customizable for Special Environments: Coastal, low temperature, or high humidity areas
ParameterValue
Pixel Pitch10 mm
LED TypeSMD3535
Module Resolution (W×H)32 × 16 = 512 pixels
Pixel Density10,000 dots / m²
Module Size (W×H×D)320 × 160 × 18 mm
Module Weight0.47 ± 0.02 kg
HUB TypeHUB75
Brightness4,000 – 4,500 cd/m²
Color Temperature6,500 K (adjustable 1,000 K – 9,500 K)
Viewing Angle (H/V)140° / 140°
Brightness / Color Uniformity≥ 98 %
Contrast Ratio5,000 : 1
Max Power Consumption645 W/m²
Typical Power Consumption215 W/m²
Input VoltageAC 90 – 132 V / AC 186 – 264 V (47 – 63 Hz)
Frame Frequency60 Hz
Refresh Rate3,840 Hz
Processing Depth12 – 14 bit
Video Support2K HD / 4K UHD
Life Span100,000 hours
Operating Temp / Humidity–20 °C ~ 50 °C / 10 % ~ 80 % RH (No Condensation)
Storage Temp / Humidity–20 °C ~ 55 °C / 10 % ~ 85 % RH (No Condensation)
CertificationsBIS / CE / CB / ROHS / EAC

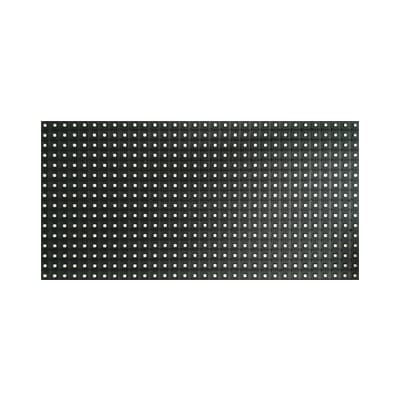

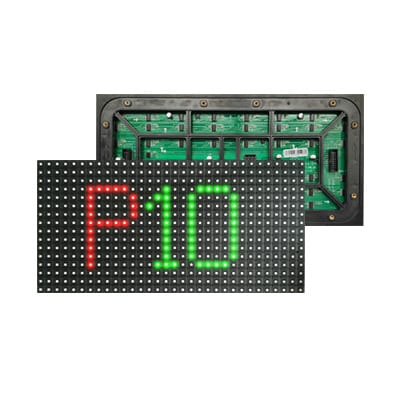

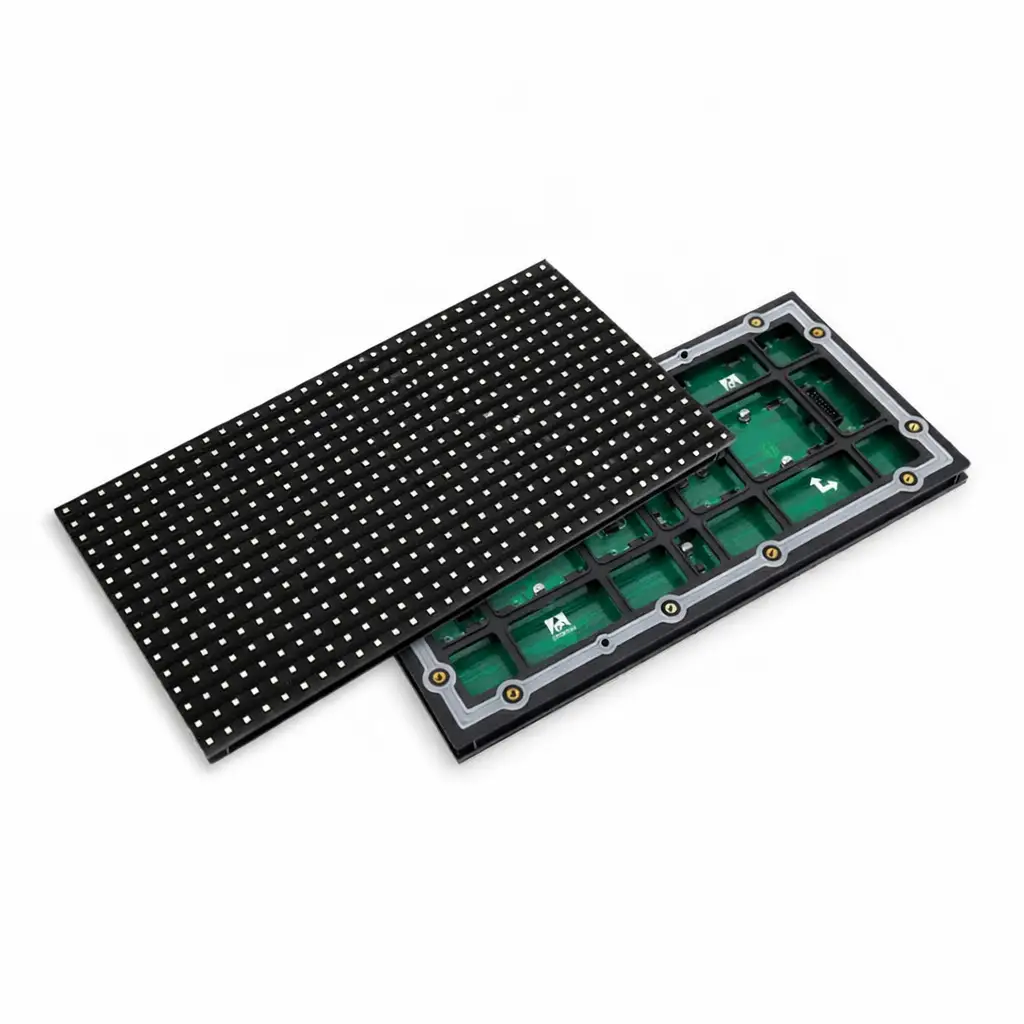

P10 Outdoor LED Sign Board

The LDMO1109 – P10 Outdoor LED Display Module is purpose-built for high-impact digital advertising in large-scale outdoor environments. Featuring a 10.0mm pixel pitch and a resolution of 32×16 pixels on a 320×160mm module, this unit balances visibility, cost-efficiency, and rugged design for long-range viewing.

Equipped with high-brightness SMD2121 LEDs, the module delivers a luminous output of ≥5500 cd/m², ensuring clear visibility even under direct sunlight. A wide 160° viewing angle allows maximum exposure from every direction, making it ideal for outdoor billboards, stadiums, and transportation hubs.

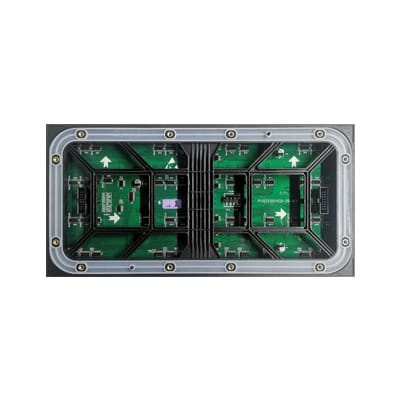

The module is IP65 rated at the front and IP54 at the rear, offering excellent protection against dust, rain, and harsh weather conditions. With support for both front and rear maintenance, installation and servicing are efficient and hassle-free.

The LDMO1109 is compatible with industry-leading control systems such as Novastar, Colorlight, and Huidu, allowing seamless integration into existing digital signage infrastructure. Designed for heavy-duty use, this module provides vibrant visuals, durability, and performance reliability over its extensive lifespan of 100,000+ hours.
