Key Features:
| Specification | Details |
|---|---|
| Product Name | NovaStar TU15 Pro |
| Product Type | LED Playback Control Processor |
| Maximum Load Capacity | 2.6 Million Pixels |
| HDMI Input | 2 × HDMI 1.3 |
| HDMI Output | 1 × HDMI |
| USB Ports | 3 × USB 2.0 |
| Ethernet Output | 4 × Gigabit Ethernet |
| Audio Output | 1 × SPDIF, 1 × 3.5mm Audio |
| Image Scaling Width | 64–4096 Pixels |
| Image Scaling Height | 64–1920 Pixels |
| RAM | 4 GB |
| Internal Storage | 32 GB |
| Input Voltage | DC 12V 3A |
| Power Consumption | 21 W |
| Operating Temperature | -20°C to +50°C |
| Operating Humidity | 0–80% RH (Non-condensing) |
| Storage Temperature | -20°C to +70°C |
| Storage Humidity | 0–95% RH (Non-condensing) |
| Dimensions | 211.7 × 185 × 50.6 mm |
| Net Weight | 1.12 kg |

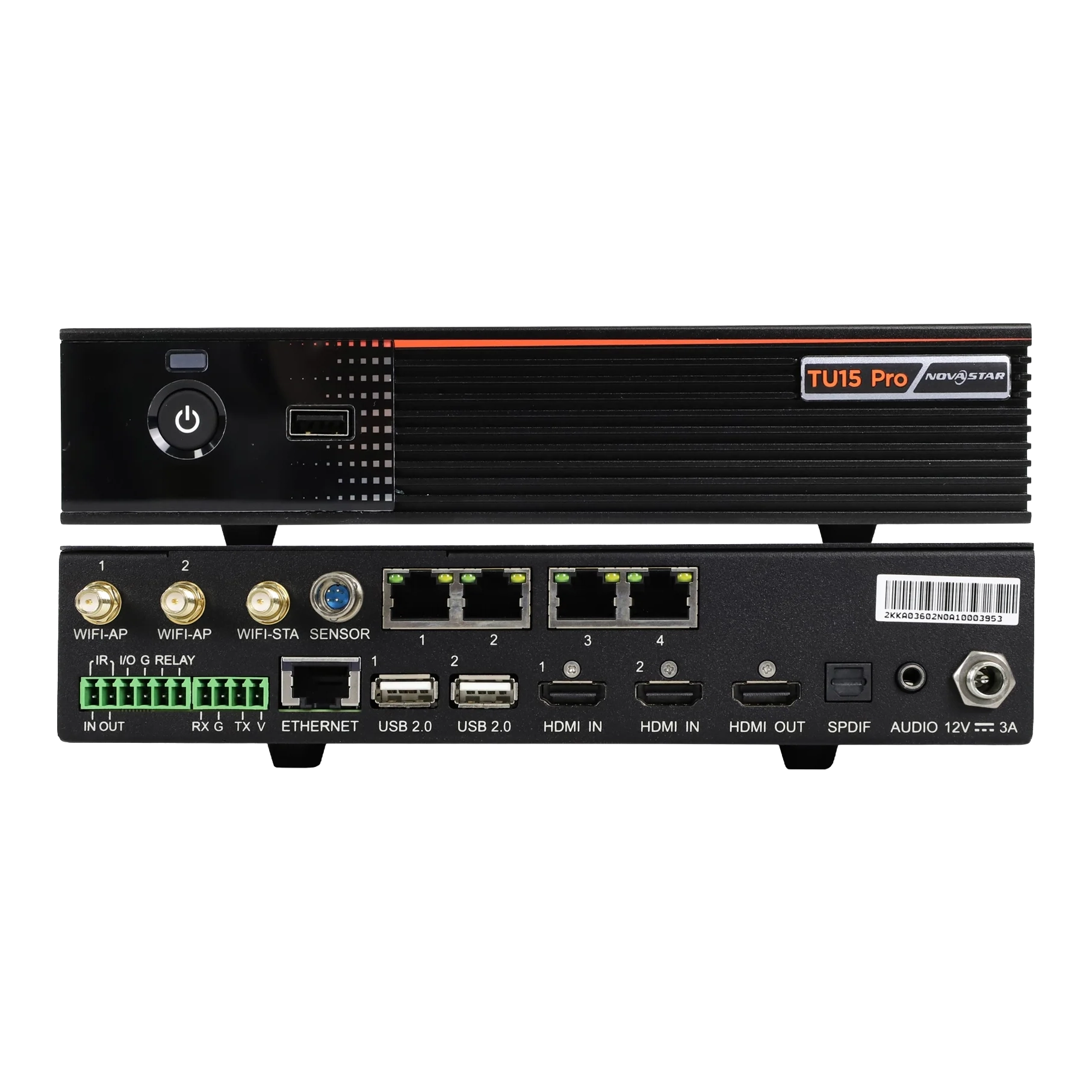

The NovaStar TU15 Pro LED Playback Control Processor is a professional multimedia playback and LED display control solution designed for digital signage, advertising displays, conference rooms, retail stores, command centers, and commercial LED screens. It supports up to 2.6 million pixels, delivering stable playback with excellent image quality.
Featuring dual HDMI inputs, three USB 2.0 ports, four Gigabit Ethernet outputs, and both SPDIF and 3.5 mm audio outputs, the TU15 Pro offers flexible connectivity for a wide range of LED display applications. The built-in image scaling function supports resolutions from 64 × 64 up to 4096 × 1920 pixels, ensuring compatibility with various LED screen sizes.
Powered by 4GB RAM and 32GB internal storage, the TU15 Pro provides smooth multimedia playback and reliable performance for continuous operation in demanding environments.
