Key Features:
| Specification | Details |
|---|---|
| Brand | Mytetra |
| Model | MYT-DM318 |
| Product Type | Portable Radio |
| Frequency Range | 136–174MHz / 400–470MHz |
| Number of Channels | 256 |
| Maximum Number of Zones | 16 |
| Channel Spacing | 12.5kHz |
| Operating Temperature | -25°C to +60°C |
| Dimensions | 138 × 60 × 41 mm |
| Weight | 301g |
| Battery Capacity | 2000mAh Li-ion (Standard), 2600mAh Li-ion (Optional) |
| Frequency Stability | ±30°C to +60°C, 25°C Ref |
| Power Output | 1.25W (1.5W Standard) |
| Power Supply | 7.5V DC ±20% |
| Digital Modulation | 12.5kHz Data/Voice |
| Audio Response | 300–3000Hz |
| Audio Distortion @ Rated Audio | ≤10% |
| Rated Audio Output | 1000mW |
| Receiver Sensitivity | -116dBm (20dB SINAD) |
| Intermodulation | TIA603 dB: ETSI 65dB |
| Adjacent Channel Selectivity | 70dB |
| Spurious Rejection | 70dB |
| Blocking | 90dB |
| Audio Response (300–3000Hz) | +1dB ± 3dB |
| Conducted Spurious Emission | -57 dBm (≤1GHz) |

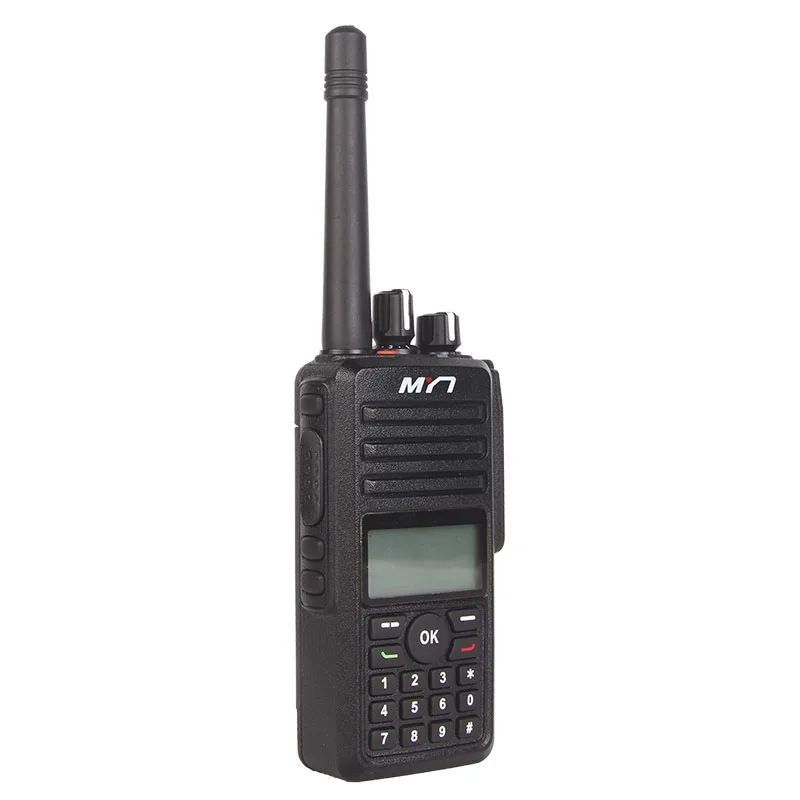

The Mytetra MYT-DM318 Portable Radio is a compact, powerful communication device designed for use in various industries. Operating in a full band frequency range (136–174MHz / 400–470MHz), this portable radio offers 256 channels and supports 16 zones. Its 12.5kHz channel spacing ensures clear and reliable communication.
With a robust 2000mAh Li-ion battery (optionally 2600mAh), the MYT-DM318 delivers efficient performance with up to 12.5kHz digital modulation and excellent audio response (300–3000Hz). It operates in temperatures between -25°C to +60°C and weighs only 301g, making it suitable for a variety of outdoor and industrial uses.
This device includes advanced FM Harmonics, Adjacent Channel Power, and Spurious Rejection, ensuring strong signal clarity. With a battery-saving design, it provides reliable communication for extended hours of operation.
