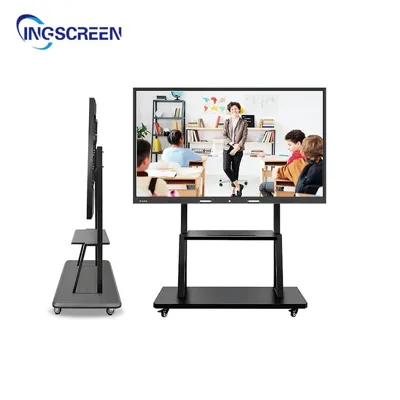

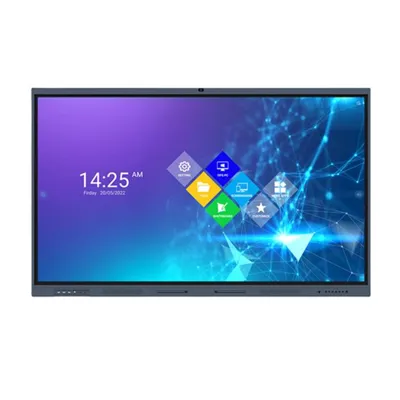

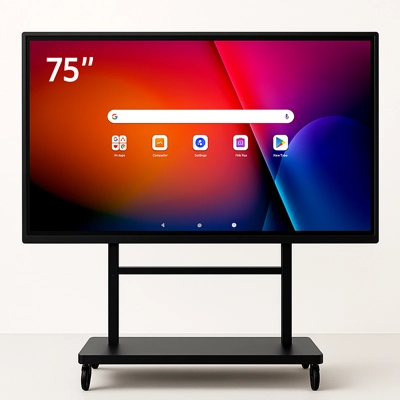

Interactive Panel 18 Series – 75″

Key Features

• Display Size: 75 inches
• Resolution: 3840 × 2160 (4K UHD)
• Panel Type: IPS/VA with DLED Backlight
• Brightness: 350 cd/m²
• Contrast Ratio: 4000:1
• Viewing Angle: 178° (H/V)
• Touch Technology: Infrared, 20-Point Multi-Touch
• Touch Response Time: ≤10ms
• Operating System: Android 13.0 / 14.0
• CPU: Octa-core (4×A73 + 4×A53)
• GPU: Mali-G52×8
• RAM: 4GB (Standard) / 8GB (Optional)
• Storage: 32GB (Standard) / 64GB & 128GB (Optional)
• Wireless Connectivity: Wi-Fi 6 (2.4GHz/5GHz), Bluetooth 5.0

•  I/O Ports:
  o HDMI IN: 2
  o DP IN/VGA IN/HDMI OUT/PC AUDIO IN: 1
  o USB 2.0: 1
  o USB 3.0: 2
  o USB Type-C (Full Function): 1
  o TOUCH USB 3.0: 2
  o Line OUT/RS232/COAX/RJ45 OUT/RJ45 IN: 1
•  Front Interfaces:
  o USB 3.0: 2
  o TOUCH USB: 1
  o HDMI IN: 1
  o USB Type-C: 1 (Full Function)
•  Power Consumption:
  o Maximum: 285W (estimated)
  o Standby: ≤0.5W
  • Power Supply: 100-240V~ 50/60Hz 4A
  • Audio: 2×15W Speakers
  • Touch Accuracy: ±1mm
  • Minimum Touch Object: 2mm
  • Writing Height: ≤3mm
  • Supported Operating Systems: Windows, Android, Linux, Mac OS X, Chrome

• Additional Features:
o Ambient Light Sensor
o NFC Functionality
o Supports 9 Devices for Wireless Sharing
