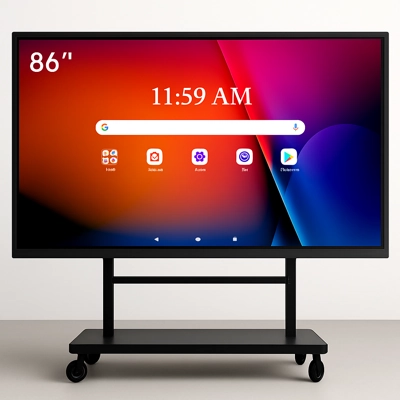

Ingscreen Interactive Panel 18 Series – 86″

৳ 0.00

Key Features

  • Display Size: 86 inches
  • Resolution: 3840 × 2160 (4K UHD)
  • Panel Type: IPS/VA with DLED Backlight
  • Brightness: 350 cd/m²
  • Contrast Ratio: 4000:1
  • Viewing Angle: 178° (H/V)
  • Touch Technology: Infrared, 20-Point Multi-Touch
  • Touch Response Time: ≤10ms
  • Operating System: Android 13.0 / 14.0
  • CPU: Octa-core (4×A73 + 4×A53)
  • GPU: Mali-G52×8
  • RAM: 4GB (Standard) / 8GB (Optional)
  • Storage: 32GB (Standard) / 64GB & 128GB (Optional)
  • Wireless Connectivity: Wi-Fi 6 (2.4GHz/5GHz), Bluetooth 5.0
  • I/O Ports:
  • HDMI IN: 2
  • DP IN/VGA IN/HDMI OUT/PC AUDIO IN: 1
  • USB 2.0: 1
  • USB 3.0: 2
  • USB Type-C (Full Function): 1
  • TOUCH USB 3.0: 2
  • Line OUT/RS232/COAX/RJ45 OUT/RJ45 IN: 1
  • Front Interfaces:
  • USB 3.0: 2
  • TOUCH USB: 1
  • HDMI IN: 1
  • USB Type-C: 1 (Full Function)
  • Power Consumption:
  • Maximum: 335W
  • Standby: ≤0.5W
  • Power Supply: 100-240V~ 50/60Hz 4A
  • Audio: 2×15W Speakers
  • Touch Accuracy: ±1mm
  • Minimum Touch Object: 2mm
  • Writing Height: ≤3mm
  • Supported Operating Systems: Windows, Android, Linux, Mac OS X, Chrome
  • Additional Features:
  • Ambient Light Sensor
  • NFC Functionality
  • Supports 9 Devices for Wireless Sharing

The Ingscreen Interactive Panel 18 Series – 86″ is a state-of-the-art interactive flat panel designed for dynamic presentations, collaborative meetings, and immersive educational experiences. With its expansive 86-inch 4K UHD display, it delivers stunning visuals and a responsive touch interface that supports up to 20 simultaneous touch points.

Equipped with a powerful octa-core processor and running on Android 13.0 or 14.0, this panel ensures smooth performance for multitasking and running multiple applications simultaneously. The inclusion of Wi-Fi 6 and Bluetooth 5.0 provides robust wireless connectivity, facilitating seamless integration with various devices.

The panel’s infrared touch technology offers high precision and responsiveness, making it ideal for interactive sessions. Its comprehensive I/O ports, including HDMI, USB, and Type-C, ensure compatibility with a wide range of peripherals and devices.

Additional features like the ambient light sensor, NFC functionality, and support for multiple device wireless sharing enhance the user experience, making the Ingscreen 86″ Interactive Panel a versatile solution for modern interactive environments.



Applications

  • Educational Institutions: Interactive teaching and digital classrooms
  • Corporate Environments: Collaborative meetings and presentations
  • Training Centers: Engaging training sessions with interactive content
  • Healthcare Facilities: Interactive patient information displays
  • Public Spaces: Informational kiosks and interactive signage

Package Contents

  • 1 × Ingscreen 86″ Interactive Panel
  • 1 × Power Cord
  • 2 × Stylus Pens
  • 1 × Wall Mount Kit
  • 1 × Remote Control
  • 1 × User Manual
  • 1 × Warranty Card
FeatureSpecification
Model18 Series
Display Size86 inches
Resolution3840 × 2160 (4K UHD)
Panel TypeIPS/VA with DLED Backlight
Brightness350 cd/m²
Contrast Ratio4000:1
Viewing Angle178° (H/V)
Touch TechnologyInfrared, 20-Point Multi-Touch
Touch Response Time≤10ms
Operating SystemAndroid 13.0 / 14.0
CPUOcta-core (4×A73 + 4×A53)
GPUMali-G52×8
RAM4GB (Standard) / 8GB (Optional)
Storage32GB (Standard) / 64GB & 128GB (Optional)
Wireless ConnectivityWi-Fi 6 (2.4GHz/5GHz), Bluetooth 5.0
