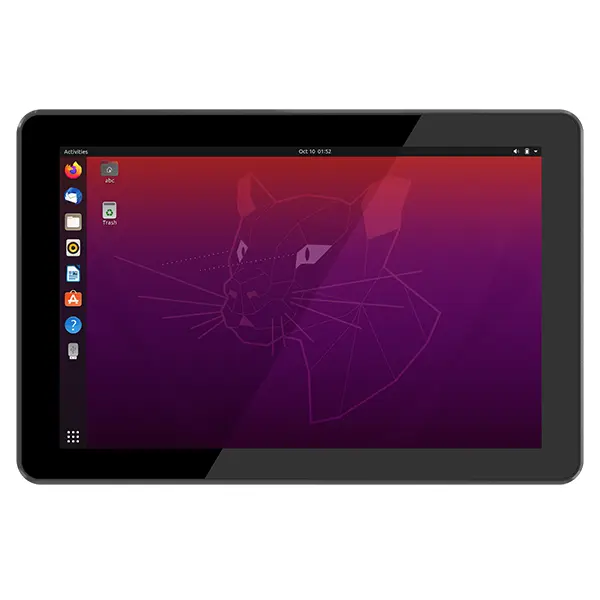

Industrial panel pc

Industrial Panel PC

৳ 0.00

Key Features

  • 12th Gen Intel® Core™ CPU: Powered by Intel® Core™ i5-1235U / i7-1255U processors, delivering high efficiency for industrial applications.
  • ️ High-Brightness Display: 10.1″ capacitive touch screen with 700 nits brightness, durable and impact-resistant flat panel design.
  • Advanced Connectivity: Wi-Fi 6, Bluetooth 5.1, and optional 4G (M.2 interface) enable flexible network access.
  • ️ Fanless & Rugged Design: Large-area heat sink supports 24/7 operation in harsh environments, without compromising reliability.
  • ️ Robust Protection: Anti-EMI, anti-static, and IP65-rated front panel – dustproof and waterproof.
  • Versatile Interfaces: Multiple USB, RJ45, DB9, HDMI, and M.2 ports for diverse integration needs.
  • ⚡ Wide Voltage & Temp Tolerance: Operates from -20°C to 60°C and supports 12V–24V DC input.
  • ️ Easy Mounting: Comes with PPC mounting hook, suitable for various industrial installation scenarios.

The P10A (Linux Version) is a compact yet powerful 10.1-inch industrial panel PC, designed for rugged environments and long-term 24/7 operation. Built with Intel’s 12th Gen processors and pre-installed with Ubuntu 22.04.4, it’s optimized for performance, stability, and integration with Linux-based industrial software. Its fanless and durable construction, IP65-rated front panel, and wide I/O support make it ideal for factory automation, data monitoring, smart retail, and industrial control systems.

Applications

  • Factory Automation – Real-time machine control and data visualization
  • Smart Retail – POS systems, self-service kiosks
  • Building Management – Control interfaces for HVAC, lighting, and security systems
  • Transportation & Logistics – Terminal management, fleet control panels
  • Healthcare & Labs – Medical equipment interface and monitoring stations
  • IoT & Edge Computing – Acts as a gateway or local processing unit for industrial IoT
CategoryDetails
ModelP10A (Linux Version)
Operating SystemUbuntu 22.04.4 LTS
CPUIntel® Core™ i5-1235U (Optional i7-1255U)
Cores/Threads2P + 8E Cores, 12 Threads (TDP 15W)
Base/Boost Speed0.9 GHz ~ 4.4 GHz
GPUIntel® Iris® Xe Graphics
RAM8GB Onboard
Storage128GB SSD (Optional: 256GB / 512GB)
Display10.1" LCD, 800×1280 resolution, 700 nits
Touch Panel10-point PCAP capacitive touch
Wi-FiWi-Fi 6 (802.11 a/b/g/n/ac/ax, 2.4G+5G)
BluetoothBluetooth 5.1
4G Module (Optional)LTE FDD: B1/B3/B7/B8/B20/B28A; GSM/WCDMA
USB PortsUSB 3.0 × 4
Audio Jack∮3.5mm Earphone Jack ×1
LAN PortsRJ45 ×2 (10M/100M/1000M adaptive)
Serial PortsDB9 (RS232) ×2
HDMIHDMI ×1
Expansion SlotM.2 2280 (SATA III / PCIe 3.0 x4 supported)
Power InputDC 19V (Supports 12–24V)
Power AdapterAC 100–240V, 50/60Hz; Output: 19V/3.42A
Dimensions257.2 × 170 × 45.95 mm
Weight1.2 kg
ColorBlack
CertificationIP65-rated Front Panel
Operating Temp-20°C to 60°C
Storage Temp-30°C to 70°C
HumidityUp to 95% (non-condensing)
