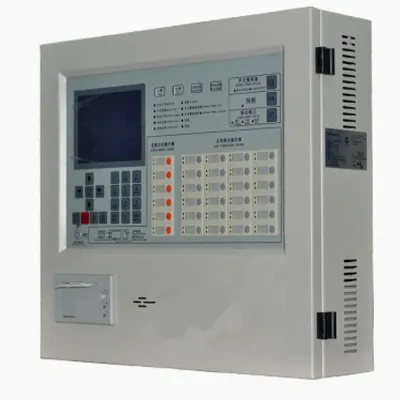

Industrial Fire Detection Panel

Industrial Fire Detection Panel

৳ 0.00

Key Features

  • 2 to 128+ zones (conventional or addressable)
  • LCD/LED display with real-time fault & fire alerts
  • Programmable logic for alarms, relays, and auto shutdown
  • Modular expansion capability (smoke, heat, flame detectors)
  • Battery backup (24V) with automatic charging
  • Sounder circuit outputs with delay and pattern control
  • Event logging (1,000+ events memory)
  • BMS/SCADA connectivity via RS485/Modbus (optional)
  • Password-protected user access levels
  • Compliant with NFPA, EN54, UL standards

An Industrial Fire Detection Panel is the brain of a fire alarm system, designed to detect, monitor, and alert in case of fire hazards within industrial or high-risk environments. These panels support multiple detectors, manual call points, and sounders, ensuring real-time alerts and fast response. Built for rugged and large-scale operations, they are suitable for factories, power stations, warehouses, and chemical plants.



Applications

  • Power plants & substations
  • Oil & gas refineries
  • Chemical & pharmaceutical factories
  • Textile, garments & food processing industries
  • Warehouses and logistics hubs
  • Airports, metro stations & tunnels
  • Large commercial and industrial buildings
ParameterSpecification
Panel TypeConventional / Addressable
Zones Supported2, 4, 8, 16, up to 128+ zones
DisplayBacklit LCD / LED Indicators
Power SupplyAC 220V, 50Hz with 24V DC battery backup
Battery Backup2 × 12V Sealed Lead Acid Batteries (up to 7/12Ah)
Sounder Output2 to 8 zones, 24V DC
Communication PortsUSB, RS232, RS485, Ethernet (in smart panels)
MountingWall-mounted / Panel-mounted
Operating Temp.-10°C to +55°C
CertificationsEN54-2/4, UL864, NFPA72, CE, RoHS
