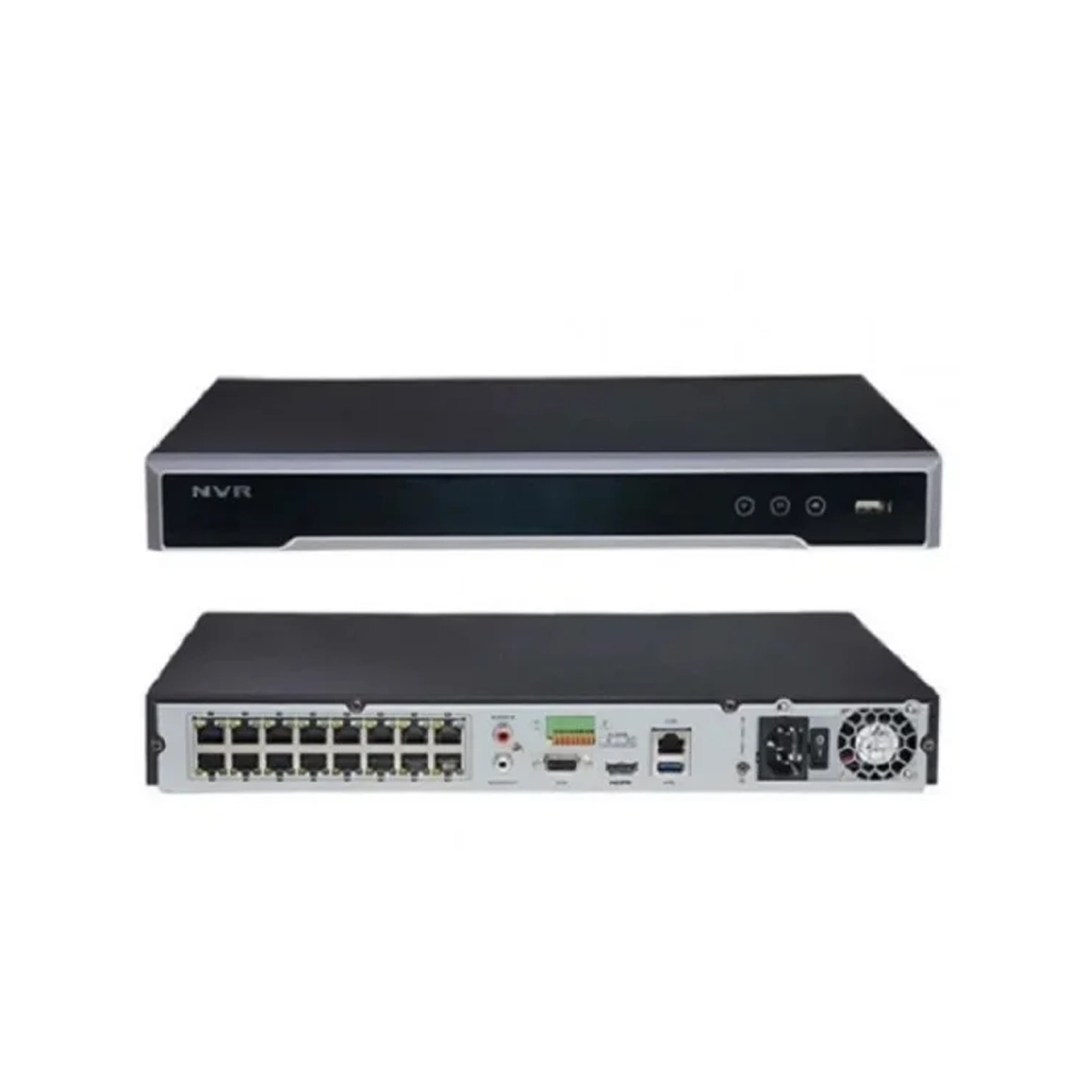

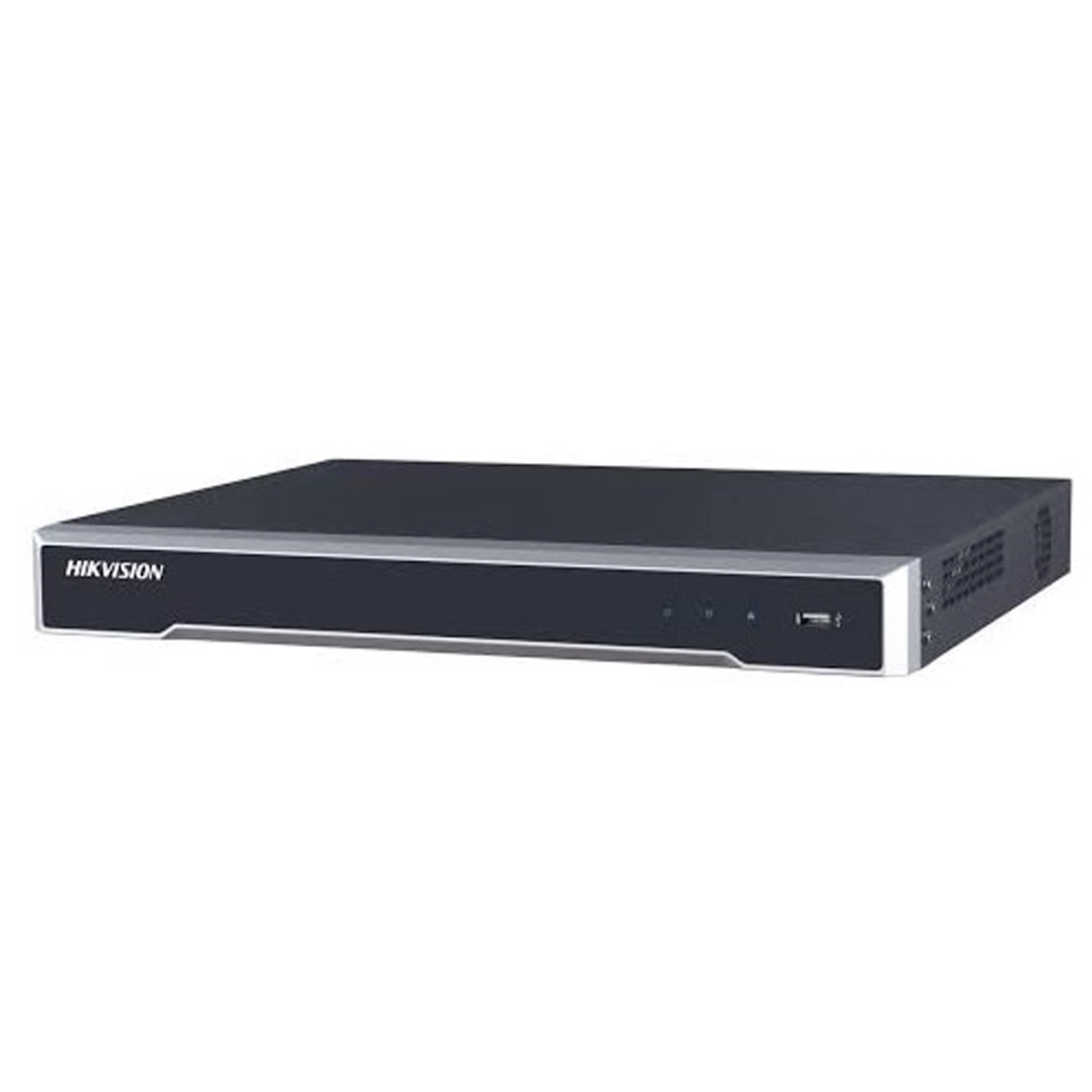

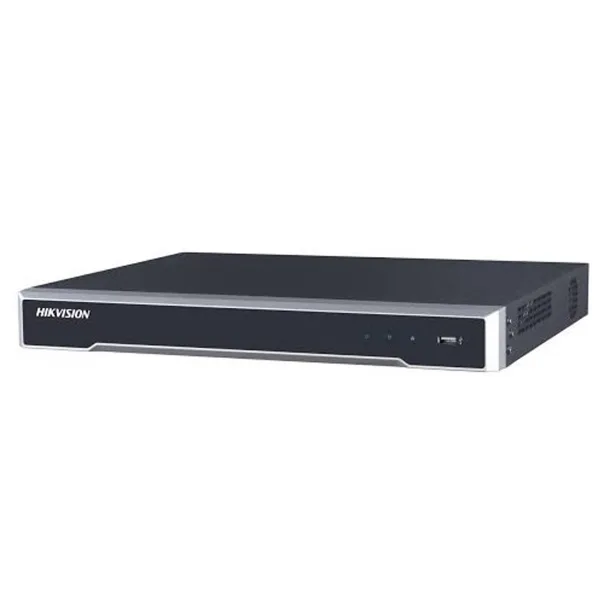

Hikvision DS-7616NI-Q2 16-Channel 4K Network Video Recorder (NVR)

Key Highlights

  • Supports up to 16 IP camera channels
  • 4K UHD HDMI output for ultra-clear monitoring
  • Advanced H.265+ compression for storage efficiency
  • Decoding capability: 1-ch @ 8MP or 5-ch @ 1080p
  • Dual storage bays: 2× SATA, each up to 8TB
  • Smart video analytics: motion, line crossing, intrusion detection
  • Remote access via web, CMS, and mobile apps
  • Compact design with 1-year warranty

Hikvision DS-7616NI-Q2 – 16-Channel 4K Network Video Recorder (NVR)

The Hikvision DS-7616NI-Q2 Network Video Recorder is a professional-grade surveillance recording solution designed for medium to large-scale security systems. With support for up to 16 IP camera channels and a maximum incoming bandwidth of 160 Mbps, this NVR delivers reliable, high-resolution video management for businesses, institutions, and security-conscious environments.

Engineered for 4K Ultra HD recording, the DS-7616NI-Q2 supports multiple video compression formats, including H.265+, H.265, H.264+, and H.264, ensuring efficient use of storage without compromising image quality. It can decode 1 channel at 8 MP or 5 channels at 1080p simultaneously, making it suitable for multi-camera setups with varying resolution requirements.

The device features dual video outputs—HDMI and VGA—allowing flexible display configurations. The HDMI port supports up to 4K UHD output for crystal-clear video monitoring, while the VGA output ensures compatibility with a wide range of monitors and control room setups.

Storage capacity is a standout feature, with two SATA interfaces supporting up to 8 TB each, providing a total of 16 TB maximum storage. This ample capacity makes it ideal for continuous recording in high-resolution formats. Thanks to the advanced H.265+ compression, storage efficiency is significantly improved, extending recording retention without increasing HDD usage.

Smart surveillance features are built in, including motion detection, line crossing detection, and intrusion detection, enabling proactive threat monitoring. Event search and playback functions allow quick access to important footage, reducing investigation time.

Remote access is supported via web interface, CMS software, and mobile apps (iOS & Android), giving security teams and administrators the ability to manage and monitor their systems from anywhere in the world.

The DS-7616NI-Q2 is built with reliability in mind, featuring CE-certified hardware and backed by a 1-year warranty. Its compact form factor—measuring 385 × 315 × 52 mm and weighing approximately 2 kg (without HDD)—makes it easy to integrate into existing security racks or enclosures.

Ideal for retail chains, warehouses, office buildings, manufacturing facilities, and public institutions, this NVR is a cost-effective yet powerful solution for centralized IP camera management.

Price: 10,400 BDT

Technical Specifications

SpecificationDetails
ModelDS-7616NI-Q2
Video CompressionH.265+, H.265, H.264+, H.264
IP Camera Inputs16 channels
Decoding Capability1-ch @ 8MP or 5-ch @ 1080p
Max Bandwidth160 Mbps incoming
Recording ResolutionUp to 8MP
Video Outputs1× HDMI (4K), 1× VGA
Audio I/O1 input, 1 output
Storage2× SATA HDD slots, up to 8TB each
Network Interface1× RJ-45 10/100/1000 Mbps
USB Ports2× USB 2.0
Smart FeaturesMotion detection, VCA search, event playback
Power SupplyDC 12V
Dimensions385 × 315 × 52 mm
Weight~2 kg (without HDD)
Warranty1 Year
