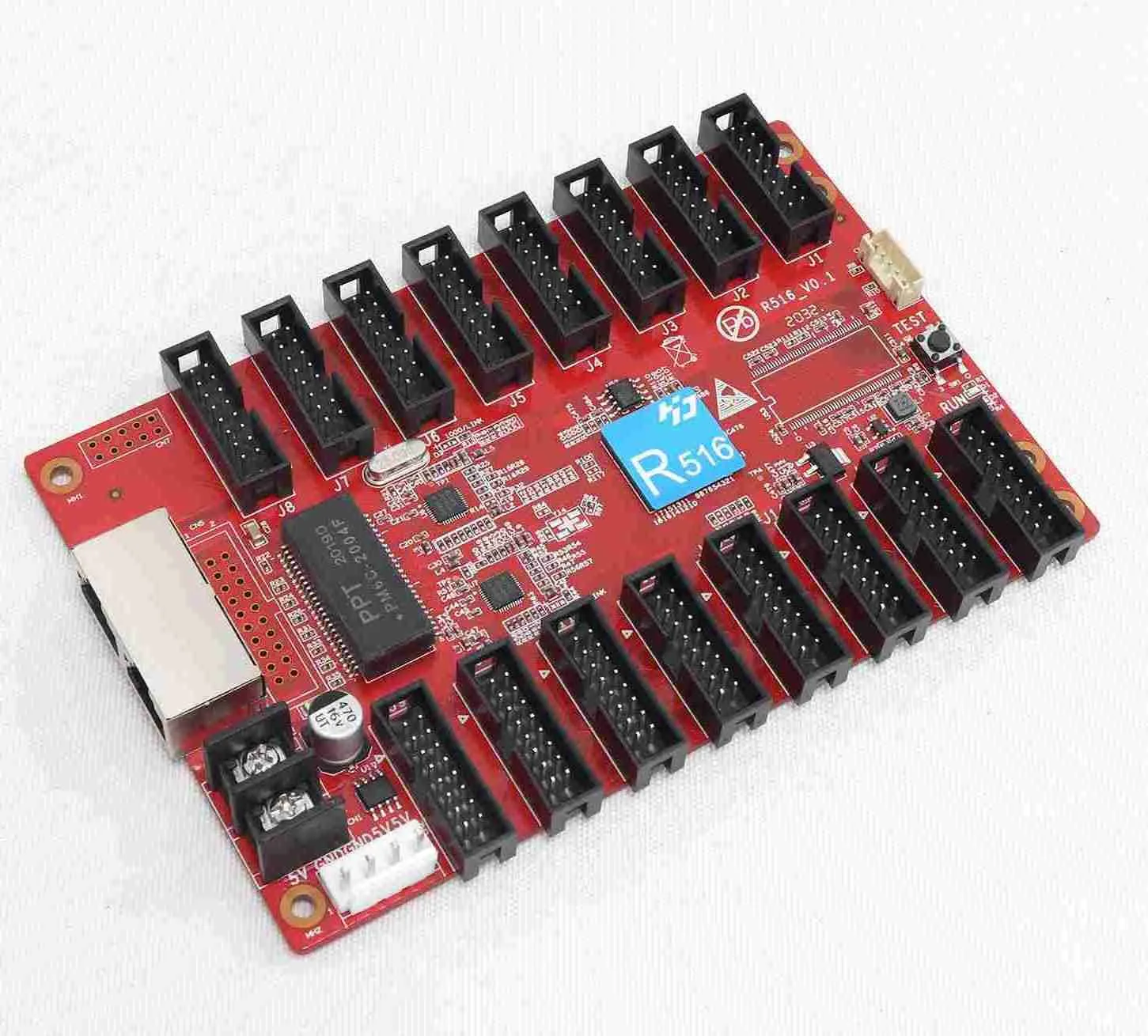

HD-R516 LED Receiving Card with 16 HUB75E interfaces and dual Gigabit ports for large display pixel control

HD-R516 Receiving Card

Key Features

  • 16 HUB75E Ports – Direct module connection without extra HUB cards
  • High Pixel Load – Supports up to 256×512 pixels (over 130K)
  • ⚙️ Scan Flexibility – Static to 1/64 scan support
  • Smart Configuration – Auto scan match and test functions
  • Long-Distance Output – Ethernet cable range up to 146m
  • Smooth Grayscale – 256 to 65K level depth for vivid display
  • Dual Ethernet Ports – Reliable daisy chaining of receivers
  • ❄️ Industrial Tolerance – Works from -40°C to +80°C; 95% RH

Specification

Details

ModelHD-R516
Interface Ports16 × HUB75E, 2 × Gigabit Ethernet
Pixel CapacityUp to 256 × 512 pixels per card (131,072 pixels)
Scanning SupportStatic to 1/64
Grayscale Support256–65536 levels
Voltage InputDC 4V ~ 6V
Power ConsumptionMax 5W
Max Transmission RangeUp to 146 meters
Operating Temperature-40°C to +80°C
Humidity Tolerance0 ~ 95% RH
Weight~103g
CompatibilityConventional + most PWM IC modules
Smart FunctionsBuilt-in test, smart config, scan auto-match
