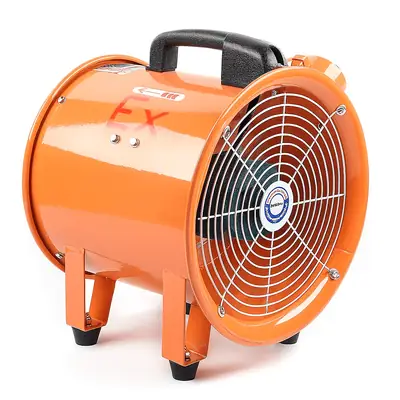

The Explosion Proof Exhaust Fan is specially designed for environments with flammable gases, vapors, or dust, ensuring safe air ventilation while eliminating ignition risks. It is widely used in oil & gas industries, chemical plants, paint booths, and hazardous warehouses.
The motor and components are ATEX / IECEx certified and built to prevent sparking, overheating, or short circuits that could lead to explosions.
| Specification Item | Value / Option |
| Voltage | 220–380V, 3-phase / single-phase |
| Power Rating | 0.37 – 5.5 kW (depending on size) |
| Air Flow (CFM) | 1,500 – 12,000 CFM |
| Material | Steel / Stainless Steel / Aluminum Alloy |
| Blade Diameter | 300mm – 1000mm |
| Explosion Proof Class | Ex d IIB T4 / IIC (Optional) |
| Protection Level | IP55 – IP66 |
| Mounting Type | Wall, Ceiling, Ducted, or Portable |
| Noise Level | ≤75 dB (Depending on model) |
| Certifications | ATEX, IECEx, CE, RoHS |
