| Specification | Details |
|---|---|
| Model No. | DS-Q20 |
| Brand | Daosafe |
| Framework Material | Steel + White and black stoving varnish |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | Plexiglas-transparency |

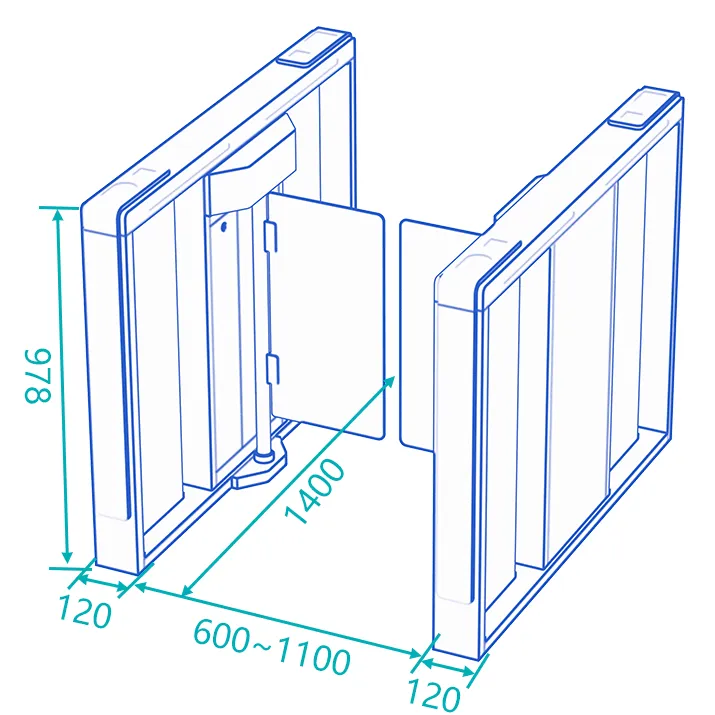

| Dimension | 1400 * 120 * 978mm |
| Weight | 65kg/pcs |
| Passage Width | 600-1100mm |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 20W |
| Operation Temperature | -20 °C ~ 75 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 40 people per minute |
| Infrared Sensor | 6 Pairs (standard) |
| LED Indicator | Yes |
| Emergency | Arms will open automatically |
| Communication | Dry contact, Relay signal, RS485 |
DS-Q20 Turnstile Gate Advanced Access Control System
0.00৳
Key Features;
- High Durability: 10 million MCBF for long-lasting performance.
- Flexible Access: Single and bi-directional passing.
- Fast Flow: Handles 40 people per minute.
- Automatic Arms: Opens automatically during emergencies.
- LED Indicators: Clear visual guidance for users.
- Environment-Friendly: Works in temperatures from -20°C to 75°C, and up to 95% humidity.
- Energy Efficient: 24V DC, 20W power consumption.
- Adjustable Passage: Width from 600mm to 1100mm.
