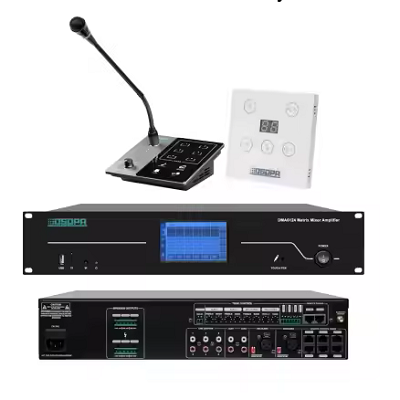

Digitally managed PA matrix controllers

৳ 0.00

Key Features:

  • Centralized Digital Control: Manage zones, sources, and volume via software or touch panel.
  • Multiple Audio Zones: Supports broadcasting to different areas independently or simultaneously.
  • High Audio Quality: Digital signal processing (DSP) ensures clear and distortion-free sound.
  • Scheduled Broadcasting: Timer-based announcements, bell tones, and music playback.
  • Network Integration: Can be controlled over LAN/WAN; supports IP paging.
  • Emergency Broadcast: Auto override for fire alarm and emergency systems.
  • Expandable System: Easily add microphones, zones, amplifiers, or audio sources.
  • Remote Control: Operate system via PC, remote mic, or mobile app (optional).

Brief Description:
A Digital Control PA System is an advanced public address solution designed for modern infrastructures such as schools, campuses, hospitals, corporate offices, transportation hubs, and smart buildings. It offers flexible zone management, superior sound quality, and easy integration with IT networks, providing efficient, programmable, and reliable audio distribution.
Technical Specifications (Typical System):

ComponentDetails
System TypeDigital/IP-based Central Control System
Zones Supported10 to 200+ zones (scalable)
Audio InputsMIC, AUX, USB, Line-in, Network Audio
Output Channels70V/100V line or 4Ω/8Ω speaker outputs
Amplifier Power120W – 1000W (per amplifier unit)
Control InterfacePC Software / Touch Panel / Remote Mic Station
NetworkingTCP/IP, RS485, optional Wi-Fi
Audio Quality16-bit/24-bit digital processing (DSP)
SchedulingDaily/weekly pre-programmed announcements
Emergency SupportAuto override, fire alarm integration
Power SupplyAC 220–240V, backup battery compatible
MountingRack-mountable or cabinet installation
