26 Pin IDC Female Connector
৳ 0.00
LED Display Builder
26-pin (2×13) IDC connector

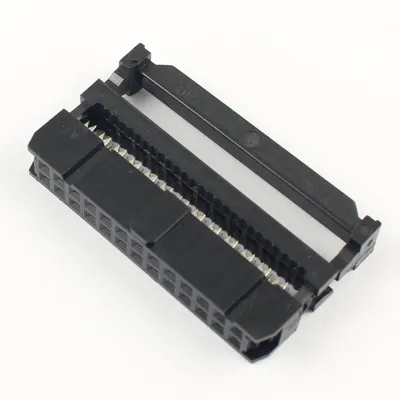

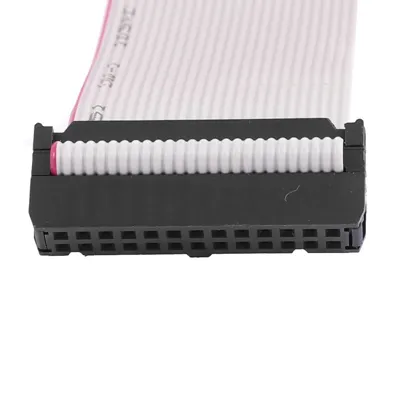

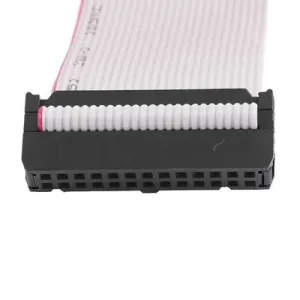

26 Pin IDC Female Connector
The 26-Pin IDC Female Connector is a dual-row (2×13) insulation displacement connector designed for flat ribbon cables (FRC). It allows for quick, solder-free, and reliable connections to standard 2.54mm pin headers used in embedded systems, development boards, industrial control systems, and digital electronics. These connectors are easy to crimp and ideal for fast prototyping or signal interfacing.
Applications
- Connection with GPIO headers on development boards
LCD, keypad, relay board, or module interfacing
ISP/JTAG/ICSP cable building
Embedded project wiring & control systems
DIY electronics & prototyping
Board-to-board interconnects
| Specification | Value |
| Pin Count | 26 (2x13) |
| Connector Type | IDC Female Connector |
| Pitch | 2.54mm (0.1 inch) |
| Cable Compatibility | 26-conductor FRC, 28 AWG typical |
| Contact Material | Copper alloy, Tin/Nickel-plated |
| Body Material | Thermoplastic / Nylon |
| Operating Temperature | –20°C to +85°C |
| Mount Type | Crimp-on using IDC tool |
| Durability | ≥ 200 mating cycles |
