৳ 0.00
16-pin (2 rows × 8 pins) IDC connector
Standard 2.54mm pitch spacing
Compatible with 16-wire flat ribbon cables
Snap-on design – easy to assemble using IDC crimp tool
Durable plastic housing with precision-molded contacts
Reliable, solderless insulation displacement design
Works with both male pin headers and PCB header rows
Ideal for prototyping and quick-disconnect systems

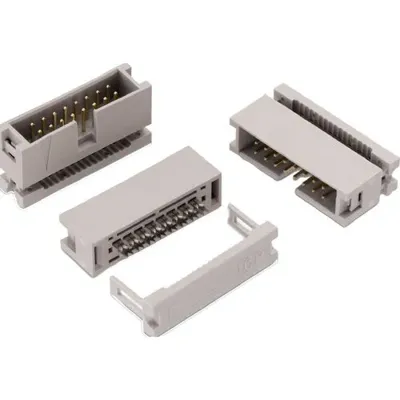

The 16-Pin IDC (Insulation Displacement Connector) is a standard 2-row (2×8) female connector designed to work with FRC (Flat Ribbon Cable). It allows for quick, reliable, solderless connections between digital devices, PCBs, and development boards. This type of connector is widely used in embedded systems, programming headers, and data communication ports.
| Specification | Value |
| Pin Count | 16 (2x8) |
| Connector Type | IDC Female |
| Pitch | 2.54mm (0.1 inch) |
| Row Configuration | Dual-row |
| Contact Material | Copper alloy with tin/ni plating |
| Insulator Material | High-quality thermoplastic |
| Mount Type | Crimp-on for flat ribbon cable |
| Cable Compatibility | 16-conductor FRC, 28 AWG (typical) |
| Operating Temp. | –20°C to +85°C |
| Durability | ≥ 200 mating cycles |
