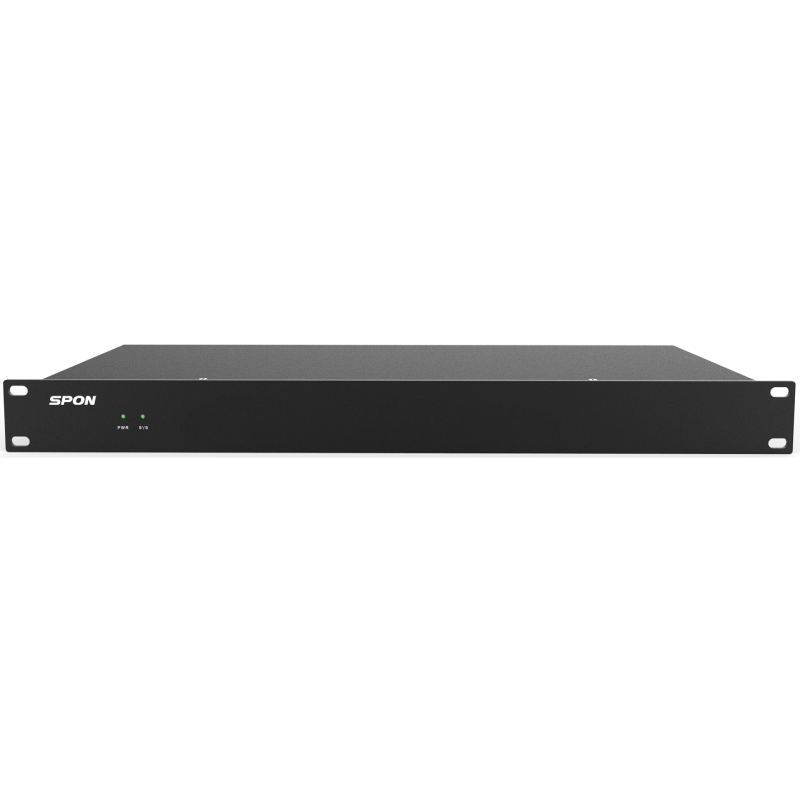

Name: SPON SAP-F88E 8x8 Digital Audio Processor with DSP - Mugnee Multiple LimitedSPON SAP-F88E 8x8 Digital Audio Processor with DSP
Brand: Mugnee Multiple Limited
Availability: InStock

Specifications

Description

Reviews (0)

Category	Specification
Model	SAP-F88E
Processor	ADI SHARC 21489 DSP
DSP Frequency	450MHz
DSP Engine	40-bit Floating Point
Audio Channels	8 Inputs × 8 Outputs
Sampling Rate	48kHz / 24-bit
Audio Algorithms	AEC, AFC, ANC, Ducker
Input Gain	0 / 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dBu
Phantom Power	48V
Frequency Response	20Hz – 20kHz (±0.5dB)
Maximum Level	+18dBu
THD+N	< -95dB @ 17dBu
Input Dynamic Range	113dB
Output Dynamic Range	113dB
Channel Isolation	108dB @ 1kHz
Input Impedance	5.4kΩ (Balanced)
Output Impedance	600Ω (Balanced)
System Latency	< 3ms
Power Supply	AC 220V, 50Hz
Operating Temperature	0°C to +40°C
Dimensions	482 × 200 × 45 mm
Weight	3 kg
Warranty	2 Years

The SPON SAP-F88E Digital Audio Processor is a professional 8-input, 8-output DSP audio processing system designed for conference rooms, boardrooms, auditoriums, training centers, government facilities, and commercial AV installations. Powered by the advanced ADI SHARC 21489 DSP processor, it delivers exceptional audio quality with powerful signal processing features including Acoustic Echo Cancellation (AEC), Automatic Feedback Cancellation (AFC), Ambient Noise Compensation (ANC), and Audio Ducking. The built-in USB sound card, flexible routing, network management, and central control integration make it an ideal solution for modern conference and sound reinforcement systems.
