Price range: 65,000.00৳ through 90,000.00৳
Key Features
| Category | Specification |
|---|---|
| Model | GEN-5301P26 |
| Amplifier Type | Class-D |
| Output Power | 1 × 260W |
| Speaker Output | 70V / 100V Constant Voltage |
| Frequency Response | 130Hz – 18kHz (±3dB) |
| THD+N | <0.1% @ 1kHz |
| Signal-to-Noise Ratio | ≥85dB |
| Audio Codec | Opus, G.711u, G.711a, G.722 |
| Audio Formats | MP3, WAV |
| Audio Storage | Up to 20 files (80MB) |
| Multicast Streams | Up to 20 |
| Network Interface | 100BASE-TX RJ45 |
| Protocols | TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF |
| Configuration | Web Interface / DevConfig Tool |
| Bluetooth | External 2.4GHz Antenna |
| USB | USB 2.0 |
| Control Input | 2 × Control Inputs |
| Control Output | 1 × Control Output |
| EMC Output | DC24V / 2A |
| Line Input 1 | Balanced, 500mV |
| Line Input 2 | Balanced, 500mV |
| Mic Input | 6.5mm TRS, Balanced, 50mV |
| AUX Output | 2 × RCA |
| Input Voltage | 100V–240VAC, 50/60Hz |
| Standby Power | <10W |
| Maximum Power Consumption | <310W |
| Dimensions | 483 × 317 × 44 mm |
| Weight | 4.2 kg |
| Operating Temperature | 0°C to +50°C |
| Installation | Desktop / Wall Mount / Rack Mount |
| Warranty | 2 Years |

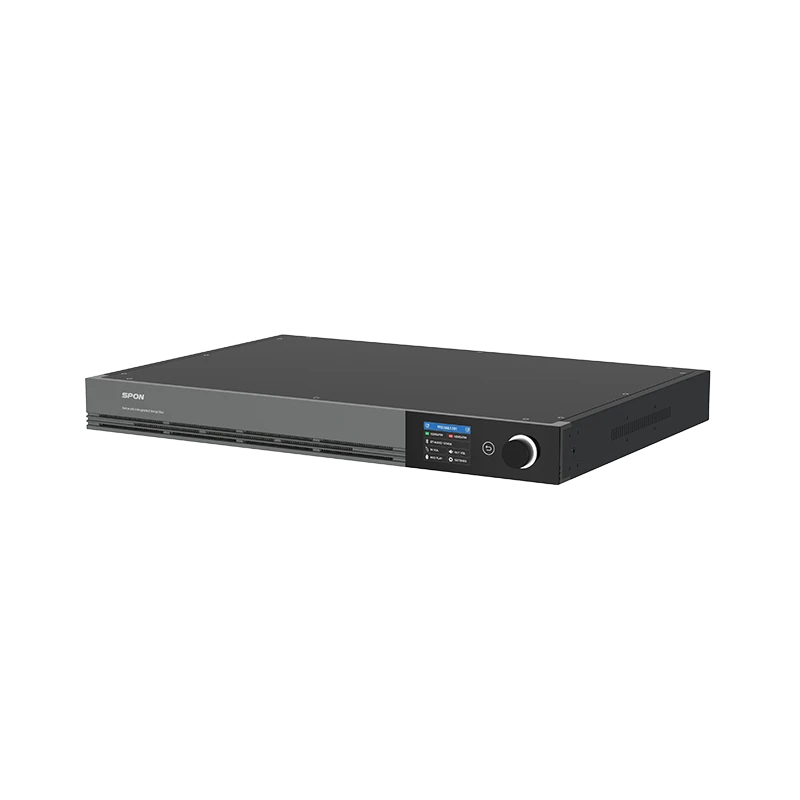

The SPON GEN-5301P26 is a professional-grade Network Integrated Amplifier with a built-in 260W Class-D digital amplifier, designed for IP-based public address, voice evacuation, background music, and network audio broadcasting applications. It supports SIP, ONVIF, Multicast, Bluetooth, USB, Microphone, and Line Input sources, enabling flexible audio distribution across various environments such as offices, factories, schools, hospitals, shopping malls, and smart buildings. The amplifier features 70V/100V constant voltage output, remote management through a web interface and HTTP API, built-in audio storage, scheduling functions, and priority management for efficient and reliable audio broadcasting.
