Key Features:
| Specification | Details |
|---|---|
| Product Name | NovaStar A5s Plus |
| Product Type | LED Display Receiving Card |
| Maximum Resolution (PWM Driver IC) | 512 × 384 @ 60Hz (8-bit video sources) |
| Maximum Resolution (PWM Driver IC) | 256 × 384 @ 60Hz (10-bit & 12-bit video sources) |
| Maximum Resolution (Common Driver IC) | 384 × 384 @ 60Hz (8-bit video sources) |
| Maximum Resolution (Common Driver IC) | 192 × 384 @ 60Hz (10-bit & 12-bit video sources) |
| Input Voltage | DC 3.8V to 5.5V |
| Rated Current | 0.6A |
| Power Consumption | 3.0W |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | 10%–90% RH (Non-condensing) |
| Storage Temperature | -25°C to +125°C |
| Storage Humidity | 0%–95% RH (Non-condensing) |
| Dimensions | 70 × 45 × 8.3 mm |
| Net Weight | 16.2 g |

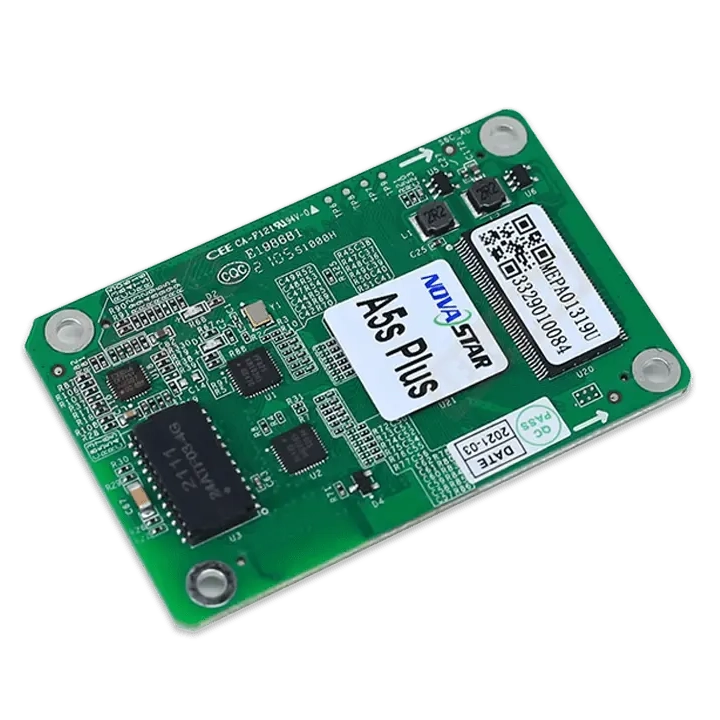

The NovaStar A5s Plus Receiving Card is a high-performance LED display receiver card designed to deliver stable data transmission, excellent image quality, and reliable control for professional LED screens. It is suitable for indoor and outdoor LED display applications including advertising boards, rental LED screens, stadium displays, and commercial video walls.
The A5s Plus supports advanced LED display technologies with high grayscale performance, precise image processing, and compatibility with various driver ICs. It supports a maximum resolution of 512 × 384 pixels at 60Hz for PWM driver ICs and provides reliable performance for high-quality LED display projects.
With a compact design, low power consumption, and wide operating temperature range, the NovaStar A5s Plus ensures stable operation in demanding environments while improving display brightness consistency and overall image performance.
