Key Features:
| Parameter | Specification |
|---|---|
| Product Type | LED Display Receiving Card |
| Maximum Loading Capacity | 512 × 512 Pixels |
| Input Voltage | DC 3.3V – 5.5V |
| Rated Current | 0.5A |
| Power Consumption | 2.5W |
| Scan Support | Up to 1/64 Scan |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -25°C to 125°C |
| Operating Humidity | 10% RH – 90% RH (Non-condensing) |
| Dimensions | 80 × 45 × 7.3 mm |
| Weight | 22.3 g |
| Certification | RoHS, EMC Class B |

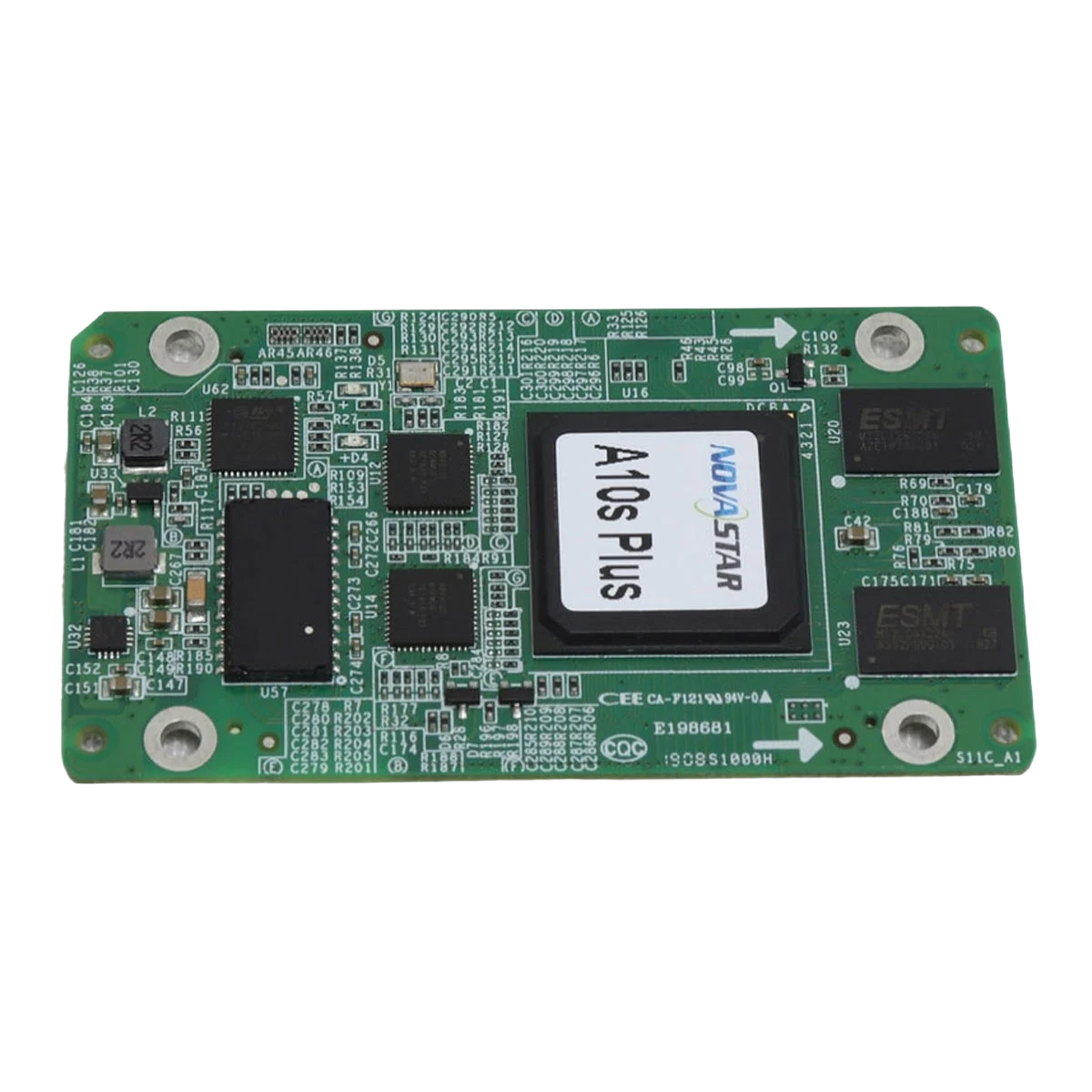

NovaStar A10s Plus is a high-performance LED display receiving card designed for professional LED screen applications. It supports high-quality image processing features including HDR, low latency, 18Bit+ display, precise grayscale correction, pixel-level brightness and chroma calibration, and advanced module management.
With a compact hardware design, stable signal transmission, and powerful monitoring features, A10s Plus provides reliable performance for indoor and outdoor LED display systems.
