| Parameter | Value |
|---|---|
| Pixel Pitch | 3.9mm |
| LED Type | 3-in-1 SMD |
| Brightness | 900 cd/m² |
| Panel Size | 500mm x 500mm |
| Panel Weight | 7.3 kg per panel |
| Module Size | 250mm x 250mm |
| Pixel Density | 65,536 pixels/m² |
| Pixels Per Panel | 128 x 128 pixels |
| Maintenance | Rear and Front (optional) |
| Ingress Protection | Front: IP40 / Rear: IP20 |
| Curve | ±7.5° |
| Flatness | ≤0.2mm |
| Material | Die-cast Aluminum |
| Calibration | Supports brightness and chroma |
| Color Temperature | 2,000K to 9,300K (Adjustable) |
| Horizontal Viewing Angle | 150° |
| Vertical Viewing Angle | 110° |
| Contrast Ratio | 5,000:1 |
| Input Power (Max) | 420 ±10% W/m² |
| Input Power (Typical) | 140 ±10% W/m² |
| Input Voltage | 100~240VAC |
| Processing Depth | ≥14bit |
| Scan | 1/16S |
| Refresh Rate | ≥3,840Hz |
| Video Frame Rate | 50Hz & 60Hz |
| Input Power Frequency | 50~60Hz |
| LED Lifetime | 100,000 hours |
| Operating Temperature/Humidity | -10°C to +45°C / 10~90% RH |
| Storage Temperature/Humidity | -20°C to +55°C / 10~80% RH |
| Standard Mounting Configuration | Hanging/Stacking |
| Max Hanging | 20 pcs |
| Max Stacking | 12 pcs |
| Certifications | CE, CB, FCC, ETL, ROHS |

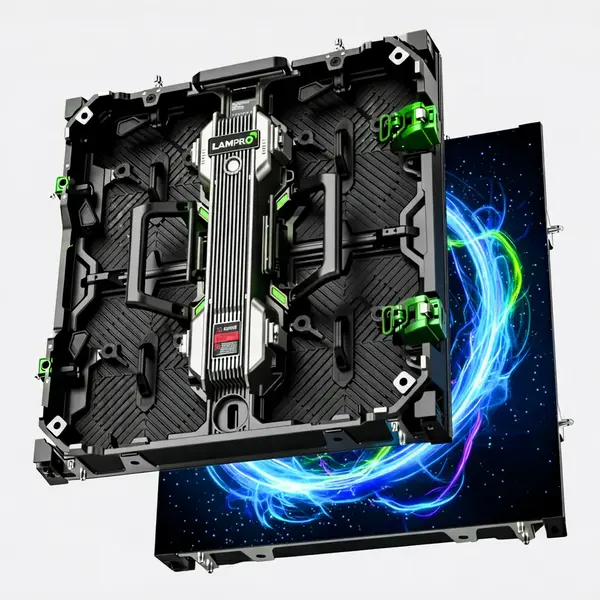

Lampro LED Display Cabinet 500X500 mm
0.00৳
Key Features:
- Size: 500×500 mm
- High Resolution: Offers high pixel density for sharp and clear visuals.
- Robust Construction: Made from durable materials that withstand harsh conditions.
- Modular Design: Allows easy scalability for large-scale projects.
- High Brightness: Ensures visibility even in bright environments.
- Energy Efficient: Designed to consume less power, reducing operational costs.
- Wide Viewing Angle: Provides a great viewing experience from all angles.
- Easy Maintenance: Removable parts for quick repairs and upgrades.





Imran Khan –
The LED display cabinet 500×500mm from Lampro has very solid build quality. The structure feels strong and well-designed, making it suitable for professional LED display installations. Panel fitting is accurate, which helps maintain a clean and seamless display setup.
The cabinet design supports proper airflow, helping with heat management during long operating hours. It works well for outdoor LED display systems and large commercial LED screens. Overall, this cabinet offers durability, stability, and a professional finish that meets project requirements.
