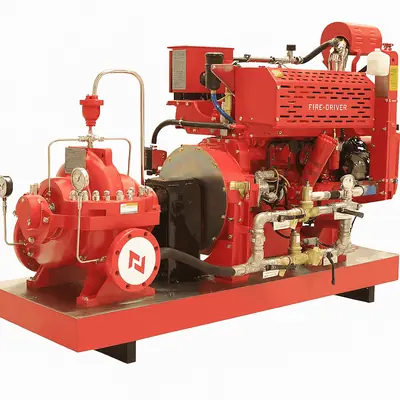

Name: Fire Pump Set - Mugnee Multiple Limited
Brand: Mugnee Multiple Limited
SKU: ESM6652
Availability: InStock

Key Features

• Diesel, electric, or combined (dual power) configurations
• UL Listed and FM Approved pump options (as per project needs)
• High-efficiency horizontal split-case or end-suction design
• Auto-start on pressure drop via pressure switch activation
• Complete skid with jockey pump, base frame, and control cabinet
• Stainless steel impellers and marine-grade corrosion-resistant body
• Built-in flow meter, pressure relief valve, and monitoring gauges
• UL/FM-certified digital controller with alarm & fault display
• Quiet operation with vibration-reduction mounting system
• Factory-tested & certified for global compliance

Technical Specifications

Description

Reviews (0)

Parameter	Specification
Pump Type	End Suction / Horizontal Split Case / Vertical Turbine
Power Source	Diesel Engine / Electric Motor / Hybrid
Flow Rate	500 – 5,000+ LPM
Pressure Rating	5 – 15 bar
Motor Capacity	7.5 kW – 150+ kW
Diesel Engine Power	20 – 200 HP
Jockey Pump	1.5 – 3 HP (automatic pressure maintenance)
Control Panel	UL/FM Digital Panel with Auto/Manual Modes
Construction Material	Cast Iron, SS304/SS316 Impellers, Bronze (opt.)
Cooling System	Water / Air-cooled (diesel) / self-cooled (electric)
Start Type	Electric / Star-Delta / Auto Start
Accessories Included	Flow meter, NRV, PRV, flanges, gauges, dampers

NAFFCO Fire Pump Set.
Certified Fire Water Supply System by NAFFCO – Global Fire Safety Leader from UAENAFFCO Fire Pump Sets are internationally certified and precision-engineered to deliver high-pressure water flow for fire sprinkler systems, hydrants, and hose reels during critical fire events. Complying with NFPA 20, UL, and FM standards, these pump sets are widely deployed in airports, high-rise buildings, industrial zones, oil depots, and commercial complexes around the world. Each NAFFCO unit is pre-assembled with a diesel engine pump, electric motor backup, jockey pump, and a digital control panel — ensuring reliable water pressure during emergencies.
