Name: CMX WS-257 Chairman & WS-258 Delegate Units
Brand: Mugnee Multiple Limited
Price: 22000.00 BDT
Availability: InStock

Specifications

Description

Reviews (0)

Specification	WS-257	WS-258
Brand	CMX	CMX
Model	WS-257	WS-258
Product Type	Chairman Unit	Delegate Unit
Display	5-inch IPS display	5-inch IPS display
Microphone Type	Capacitive cardioid directional microphone	Capacitive cardioid directional microphone
Gooseneck Length	420mm	420mm
Chairman Priority Control	Yes	No
Check-In Function	Supported	Supported
Discussion Function	Supported	Supported
Voting Function	Supported	Supported
Earphone Connection	1 × 3.5mm stereo jack	1 × 3.5mm stereo jack
Frequency Response	80Hz–16kHz	80Hz–16kHz
Wireless Frequency Range	5.1–5.8GHz	5.1–5.8GHz
Wireless Standard	802.11a/n/ac Wave 2	802.11a/n/ac Wave 2
Microphone Input Impedance	1kΩ	1kΩ
Signal-to-Noise Ratio	Greater than 80dB(A)	Greater than 80dB(A)
Battery Output Voltage	3.7V	3.7V
Battery Capacity	5200mAh	5200mAh
Charging Interface	Type-C	Type-C
Maximum Power Consumption	1.5W	1.5W
Colour	Black and silver grey	Black and silver grey
Base Dimensions	170 × 115 × 70mm	170 × 115 × 70mm
Optional Monitor Speaker	Built-in 5W Wi-Fi speaker	Built-in 5W Wi-Fi speaker

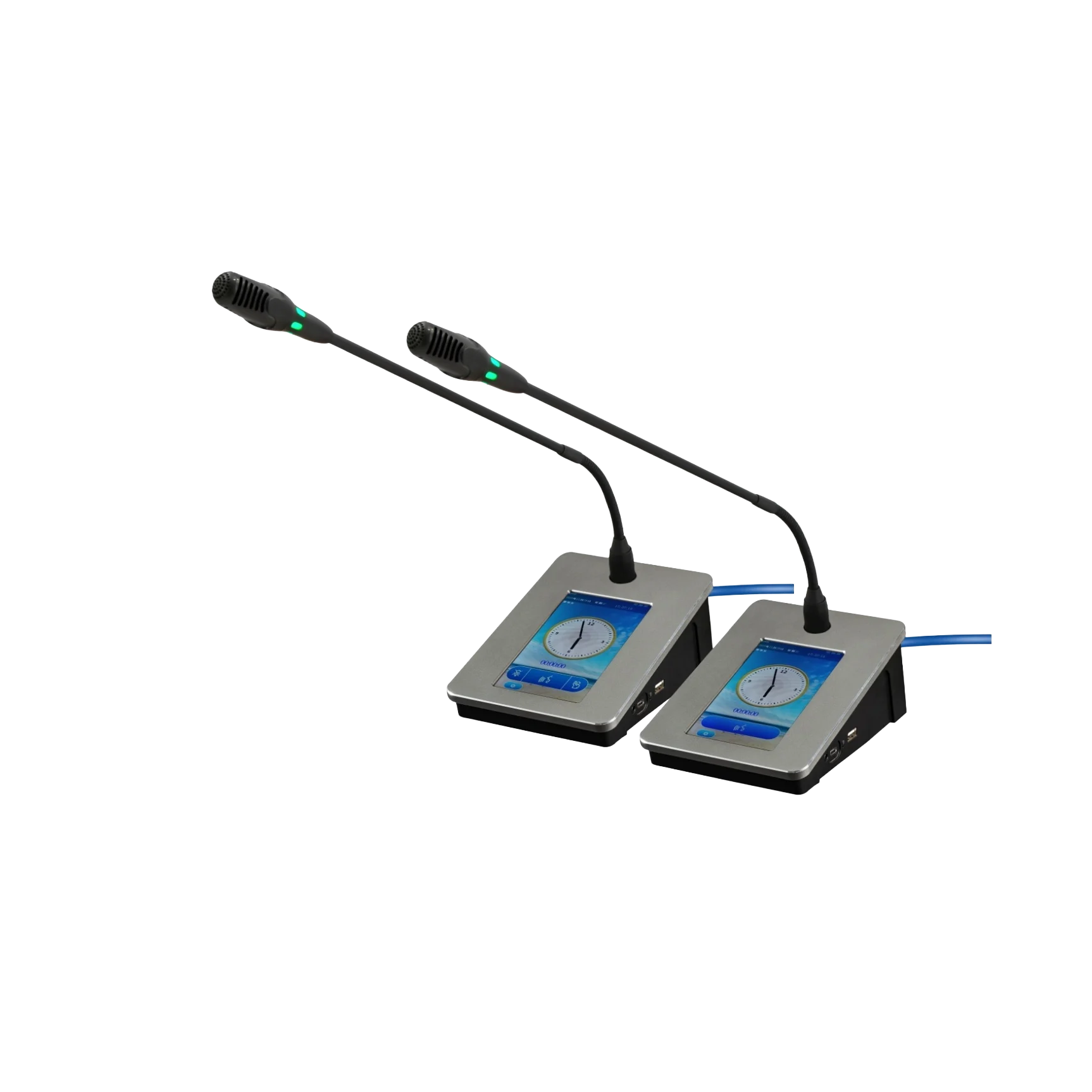

The CMX WS-257 Chairman Unit and WS-258 Delegate Unit are professional Wi-Fi conference terminals designed for boardrooms, council chambers, government offices, training centres, and corporate meeting rooms. Each unit features a 5-inch IPS display, a 420mm gooseneck microphone, and a capacitive cardioid capsule for focused speech pickup with reduced surrounding noise.

The dual-colour microphone ring shows red when speaking and green when a delegate requests permission. Both units support check-in, discussion, voting, microphone status display, and multilingual operation in English, Chinese, French, and Russian. The WS-257 chairman unit provides priority control, allowing the chairperson to switch off active delegate microphones and manage meeting check-in.

Wi-Fi transmission uses the 5.1–5.8GHz range with 802.11a/n/ac Wave 2 technology. Non-compressed 48kHz audio processing and an 80Hz–16kHz frequency response help deliver clear conference speech. Five-band EQ adjustment allows the sound to be matched to different speakers and rooms.

A built-in feedback suppressor reduces acoustic feedback, while an optional 5W monitor speaker automatically mutes when the microphone activates. Each unit includes a 3.5mm earphone jack, USB expansion interface, Type-C charging, and a rechargeable 5200mAh battery that supports dependable professional wireless conference installations across Bangladesh. Fast Type-C charging can fully recharge the battery in approximately three hours.
