Name: CMX US-201 Chairman & US-202 Delegate Discussion Units
Brand: Mugnee Multiple Limited
Price: 18500.00 BDT
Availability: InStock

Specifications

Description

Reviews (0)

Specification	CMX US-201	CMX US-202
Product Type	Chairman Discussion Unit	Delegate Discussion Unit
System Capacity	Up to 100 microphone units	Up to 100 microphone units
Connection Method	Hand-in-hand through 8-pin cable	Hand-in-hand through 8-pin cable
Power Supply	24V DC from CMX US-200MC controller	24V DC from CMX US-200MC controller
Power Consumption	1.5W	1.5W
Voice Pickup Distance	20–50 cm	20–50 cm
Total Harmonic Distortion	Less than 0.05%	Less than 0.05%
Signal-to-Noise Ratio	Greater than 75 dB	Greater than 75 dB
Frequency Response	20 Hz–20 kHz	20 Hz–20 kHz
Crosstalk Attenuation	Greater than 80 dB	Greater than 80 dB
Microphone Indicator	Red ring light when active	Red ring light when active
Gooseneck Length	450 mm	450 mm
Connector	8-pin connector	8-pin connector
Finish	Black ABS	Black ABS
Dimensions	109 × 160 × 75 mm	109 × 160 × 75 mm
Weight	0.7 kg	0.7 kg

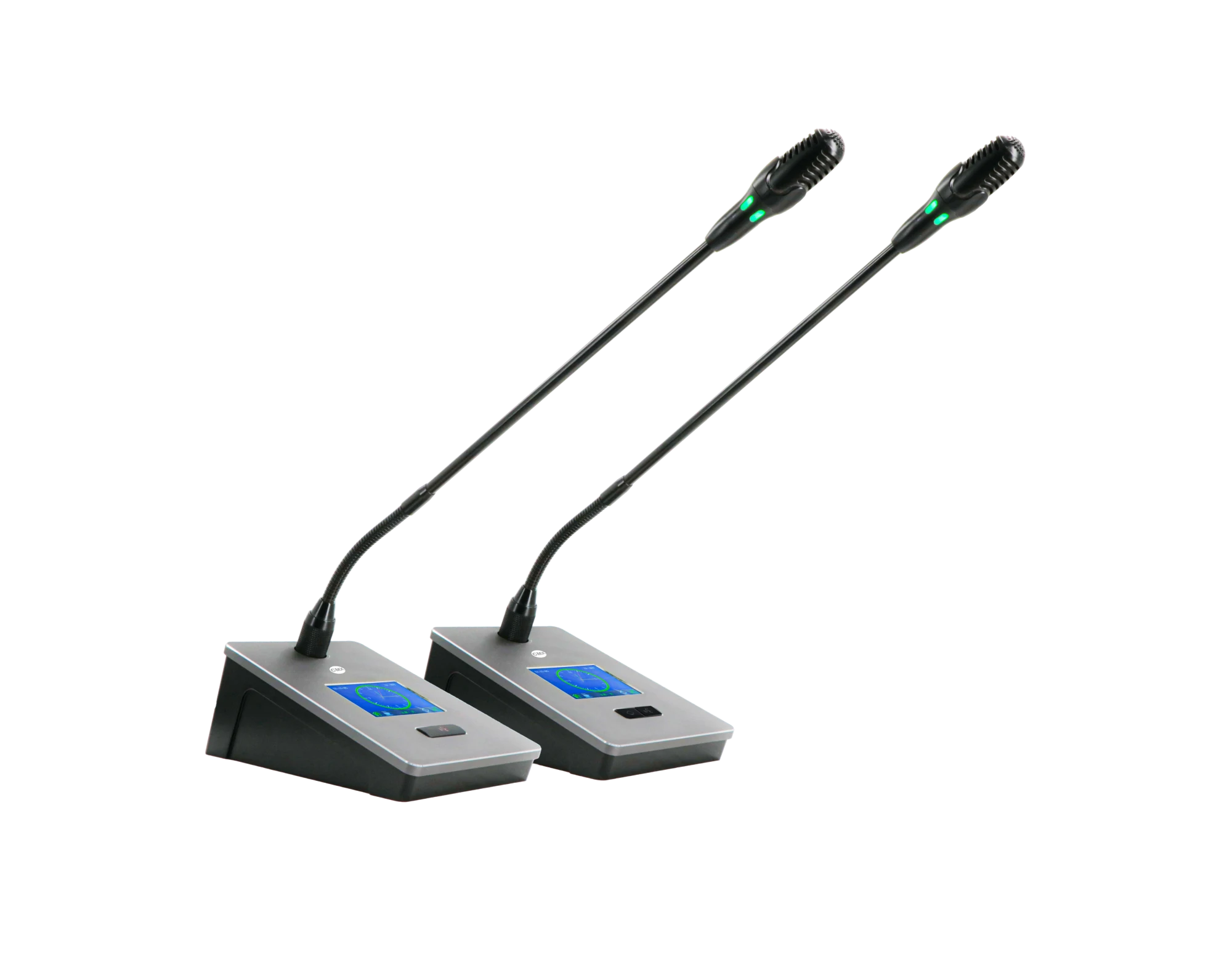

The CMX US-201 Chairman Discussion Unit and US-202 Delegate Discussion Unit are professional desktop microphone units designed for digital conference rooms, boardrooms, council chambers, training centers, and meeting halls. Both models feature a modern ergonomic housing, a 2.8-inch TFT touch display, and a 450 mm cardioid condenser gooseneck microphone for clear voice pickup from 20 to 50 cm. They support discussion, sign-in, voting, and audio-tracking functions, making them suitable for structured meetings and managed speaking sessions.

The US-201 chairman unit provides priority control and can forcibly switch off delegate microphones that are currently active. It can operate regardless of the number of open microphones, selected speaking mode, or installation position. The US-202 delegate unit allows participants to join discussions through the same reliable wired network.

Each unit connects through an 8-pin high-density aviation connector using hand-in-hand cabling and is supplied with a 2-meter connection cable. Up to 100 microphone units can be connected to a compatible CMX US-200MC controller, while a system can support a maximum of 12 chairman units. Powered directly by 24V DC from the controller, each unit consumes only 1.5W and includes a red ring indicator that lights when the microphone is active during formal conference sessions.
