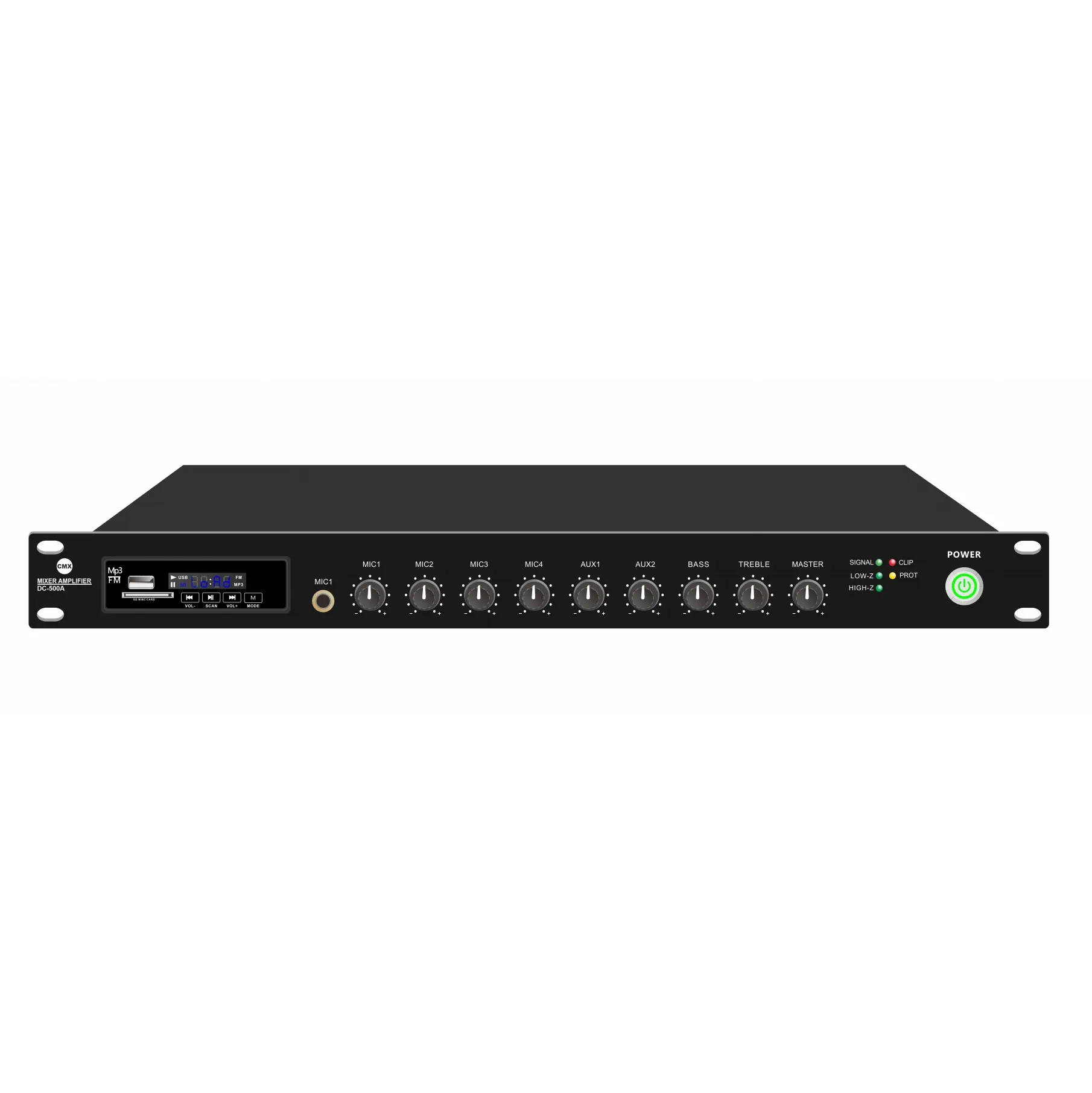

Name: CMX DC-60A to DC-500A Mixer Amplifier
Brand: Mugnee Multiple Limited
Price: 47000.00 BDT
Availability: InStock

Specifications

Description

Reviews (0)

Specification	DC-60A	DC-120A	DC-240A	DC-350A	DC-500A
Brand	CMX	CMX	CMX	CMX	CMX
Product Type	Mixer Amplifier with USB/SD/FM/Bluetooth	Same	Same	Same	Same
Rated Power Output	60W	120W	240W	350W	500W
Speaker Outputs	100V & 4–16Ω	Same	Same	Same	Same
Frequency Response	50Hz–16kHz (±3dB)	Same	Same	Same	Same
S/N Ratio	Mic ≥66dB; Aux ≥80dB	Same	Same	Same	Same
THD	<0.5%	<0.5%	<0.5%	<0.5%	<0.5%
Protection	Short-circuit, clip, overload & high-temperature protection	Same	Same	Same	Same
Power Consumption	80W	150W	310W	450W	650W
Power Supply	AC 230V, 50–60Hz	Same	Same	Same	Same
Dimensions	484 × 370 × 45 mm	Same	Same	Same	Same
Weight	4.5 kg	4.6 kg	4.7 kg	4.8 kg	5 kg

Specification	Details
Microphone Inputs	MIC1–4 switchable, unbalanced 6.3mm jack
AUX Inputs	AUX1–2 via RCA
EMC Connection	EMC output via RCA
MIC Input Level	MIC1–4: 25mV
AUX Input Level	AUX1–2: 250mV, unbalanced RCA
Output	1000mV / 1kΩ
Priority	MUTE > MIC1 > EMC > Others
Volume Controls	MIC1–4, AUX1–2, Bass, Treble and Master
DC Input	24V DC

The CMX DC-60A, DC-120A, DC-240A, DC-350A and DC-500A Mixer Amplifiers are compact all-in-one PA amplifiers for commercial projects that need reliable paging and background music without installing multiple separate audio devices. They are suitable for offices, schools, retail stores, restaurants, factories, hotels, clinics and other Bangladesh installations where microphones, music sources and distributed speakers need to operate from one central amplifier.

The series offers 60W, 120W, 240W, 350W and 500W output options, allowing project buyers to select the appropriate capacity according to speaker quantity and total load. Support for 100V distributed speakers and 4–16Ω low-impedance speakers makes the amplifiers flexible for different PA system designs.

Built-in USB/SD MP3 playback, FM radio and Bluetooth allow convenient background music without a separate media player. Four microphone inputs, two AUX inputs and an EMC connection support daily announcements and priority paging. Individual MIC and AUX volume controls, together with bass, treble and master adjustment, provide straightforward audio management.

With short-circuit, clipping, overload and high-temperature protection, plus AC and 24V DC operation, the CMX DC-A series provides a practical solution for dependable commercial PA installations.
