| Specification | Details |
|---|---|
| Product Name | 1280×960 Magnesium Alloy LED Cabinet |
| Cabinet Size | 1280(W) × 960(H) × 86(D) mm |
| Weight | 13.8 kg |
| Material | Magnesium alloy die-cast |
| Pixel Pitch | P2.5 / P4 /P5 / P6.67 / P8 / P10 / P13.33 |
| Module Size | 320 × 160 mm |
| Installation Method | Hoisting / Fixed Installation / Rental |
| Application | Indoor & Outdoor |
| IP Rating | Indoor IP30, Outdoor IP65 |
| Cabinet Color | Black / Silver / Blue |
| Accessories | Fast lock system, power installation plate, connection piece |
| Power Supply | 300W–5V60A |
| Connector | 20A standard connector |
| Cooling | Fans (120×120×25 mm) |

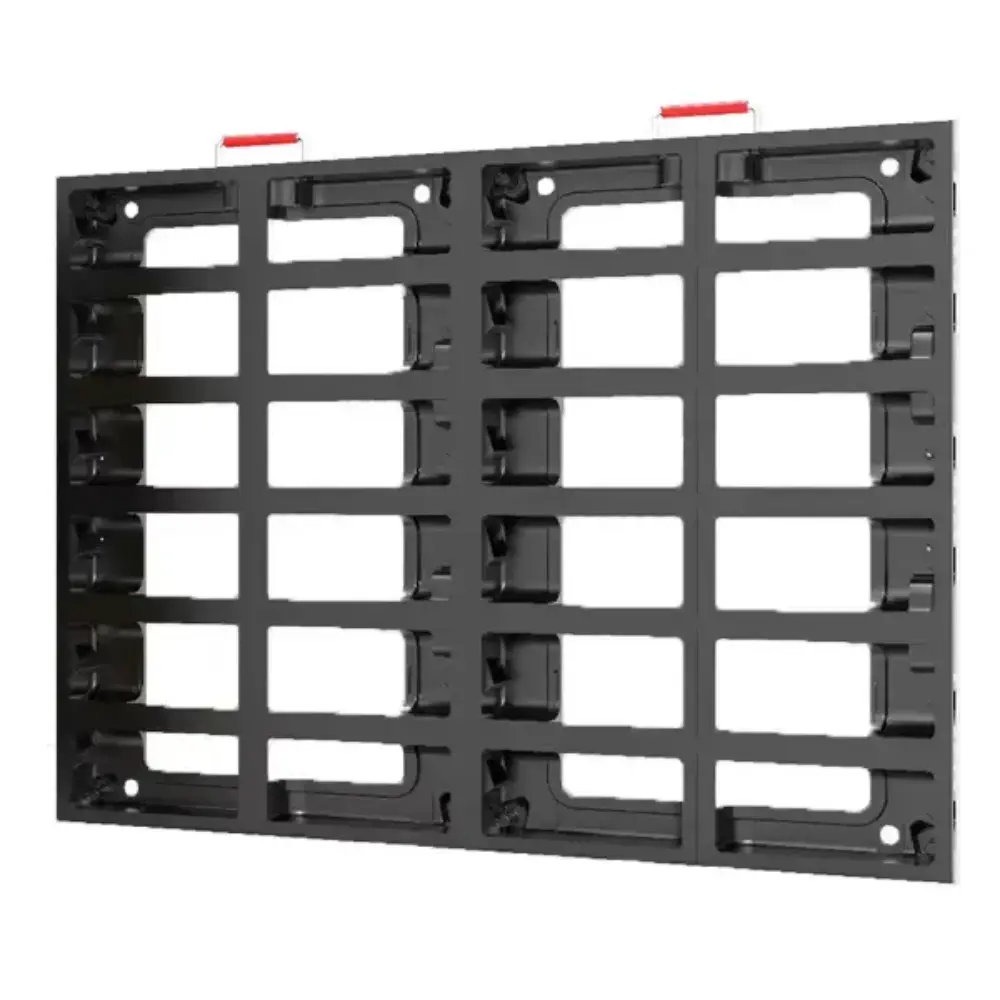

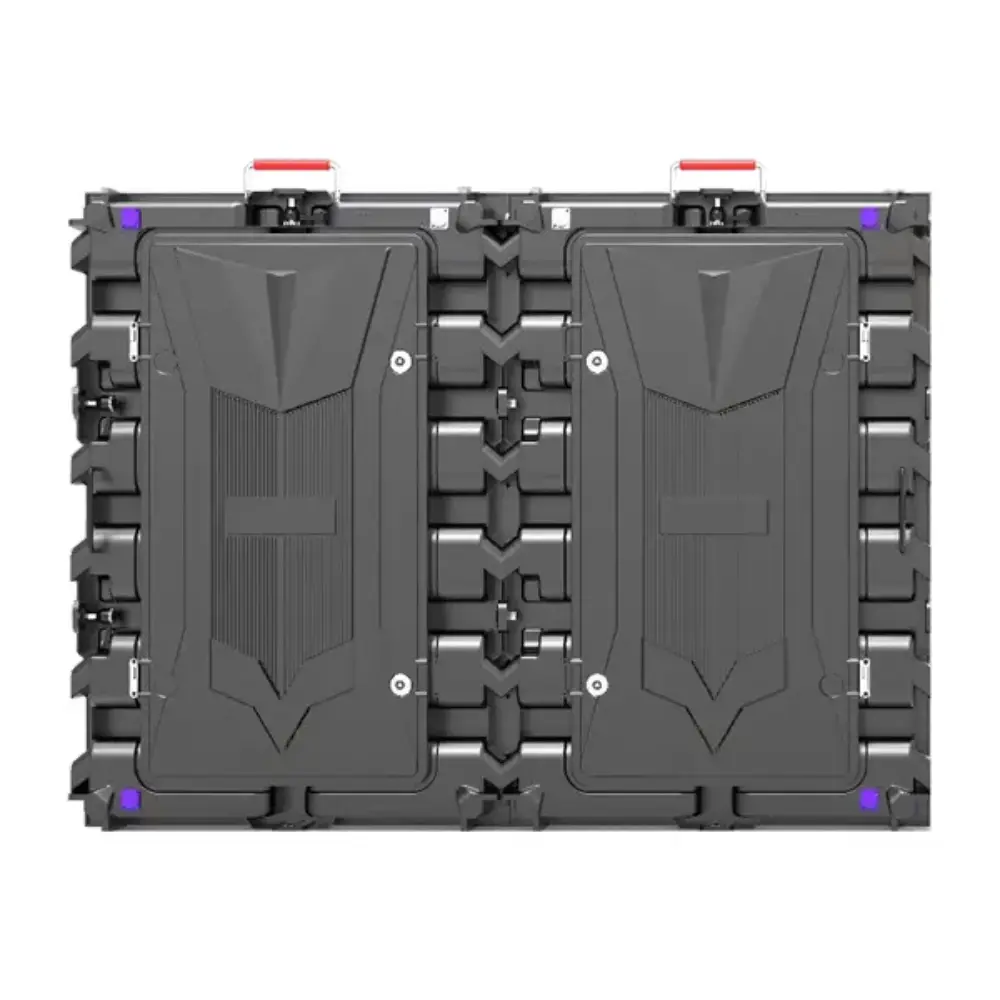

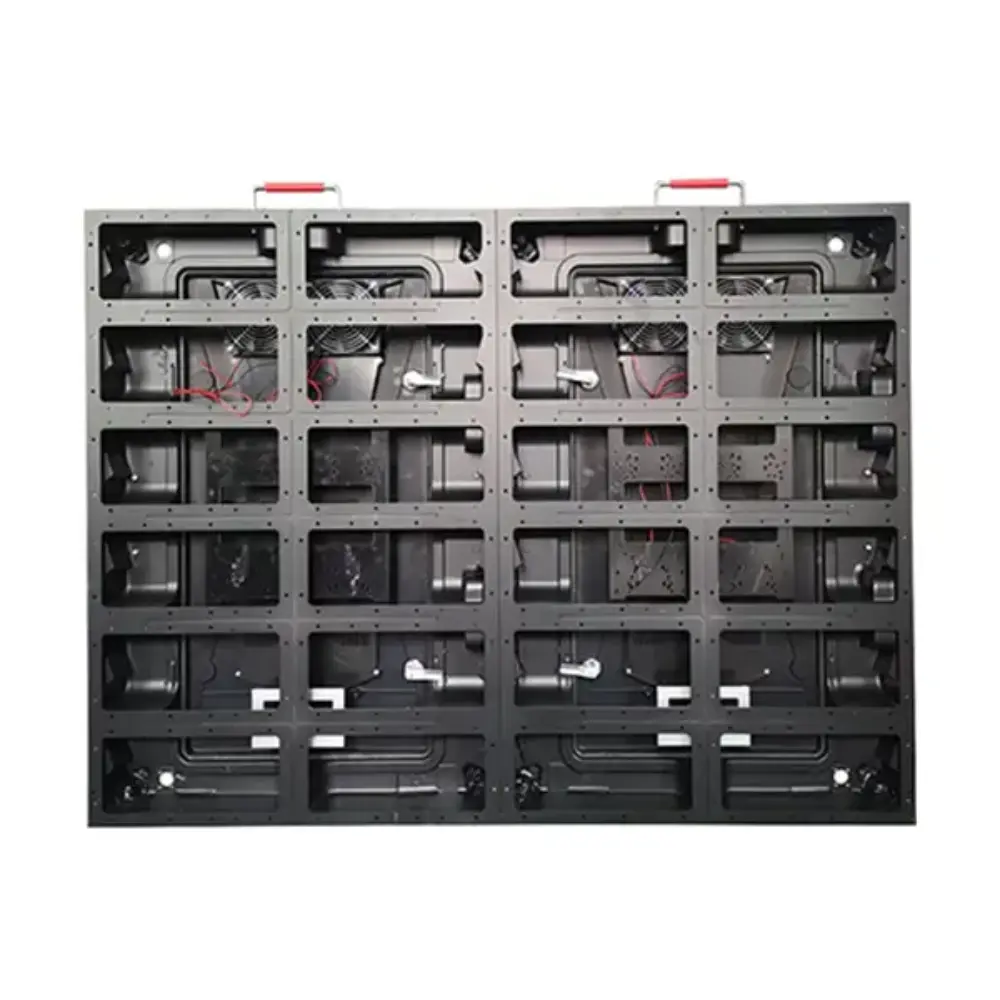

1280×960mm Magnesium Alloy Outdoor LED Display Cabinet
Key Features
- Large 1280×960×86 mm cabinet size
- Strong and lightweight magnesium alloy die-cast body
- Suitable for indoor and outdoor applications
- Supports hoisting, fixed installation, and rental use
- Compatible with P2.5, P3.076, P4, P5, P6.67, P8, P10, P13.33 modules
- High protection level: IP65 (outdoor)
- Approx. 13.8 kg lightweight design
- Fast lock system for quick installation
- Supports power and data integration
- Compatible with 320×160 mm LED modules
- Multi-color cabinet options: black, silver, blue
- Strong structural design for large display setups
